Product Introduction
PG0085.103NL
- Part Number
- PG0085.103NL
- Manufacturer/Brand
- Pulse Electronics Power
- Description
- FIXED IND 10UH 1.1A 182 MOHM SMD
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- PG0085NL
- Quantity
- 887pcs Stock Available.

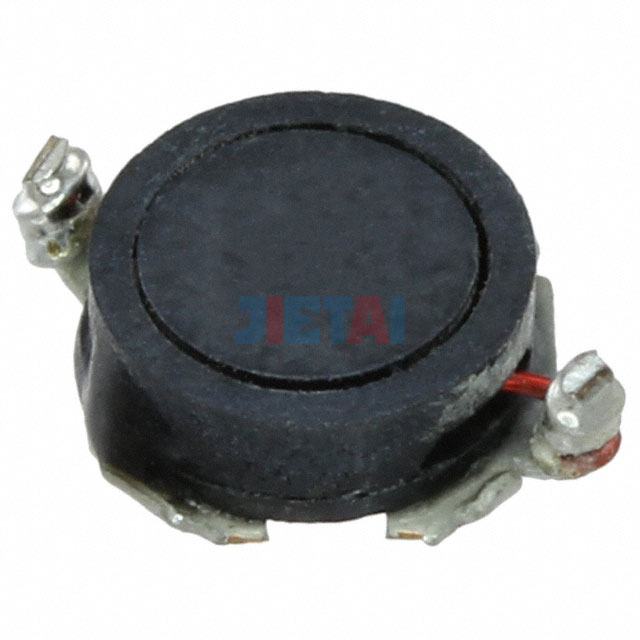

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | PG0085.103NL |
| Datasheet | PG0085.103NL datasheet |
| Description | FIXED IND 10UH 1.1A 182 MOHM SMD |
| Manufacturer | Pulse Electronics Power |
| Series | PG0085NL |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 10µH |
| Tolerance | ±20% |
| Current Rating | 550mA |
| Current - Saturation | 550mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 182 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 29MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | 100kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Height - Seated (Max) | 0.071" (1.80mm) |
