Product Introduction
B82144B1824J000
- Part Number
- B82144B1824J000
- Manufacturer/Brand
- EPCOS (TDK)
- Description
- FIXED IND 820UH 310MA 3.7 OHM TH
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- LBC
- Quantity
- 26pcs Stock Available.

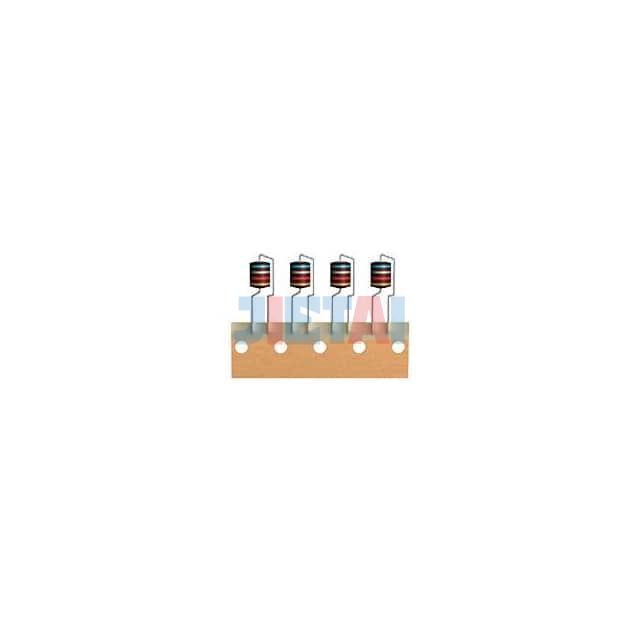

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | B82144B1824J000 |
| Datasheet | B82144B1824J000 datasheet |
| Description | FIXED IND 820UH 310MA 3.7 OHM TH |
| Manufacturer | EPCOS (TDK) |
| Series | LBC |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 820µH |
| Tolerance | ±5% |
| Current Rating | 310mA |
| Current - Saturation | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 3.7 Ohm Max |
| Q @ Freq | 20 @ 796kHz |
| Frequency - Self Resonant | 2.4MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Supplier Device Package | - |
| Size / Dimension | 0.256" Dia (6.50mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
