Product Introduction
PE-0603CD2N2KTT
- Part Number
- PE-0603CD2N2KTT
- Manufacturer/Brand
- Pulse Electronics Network
- Description
- FIXED IND 2.2NH 700MA 110 MOHM
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- 0603CD
- Quantity
- 179pcs Stock Available.

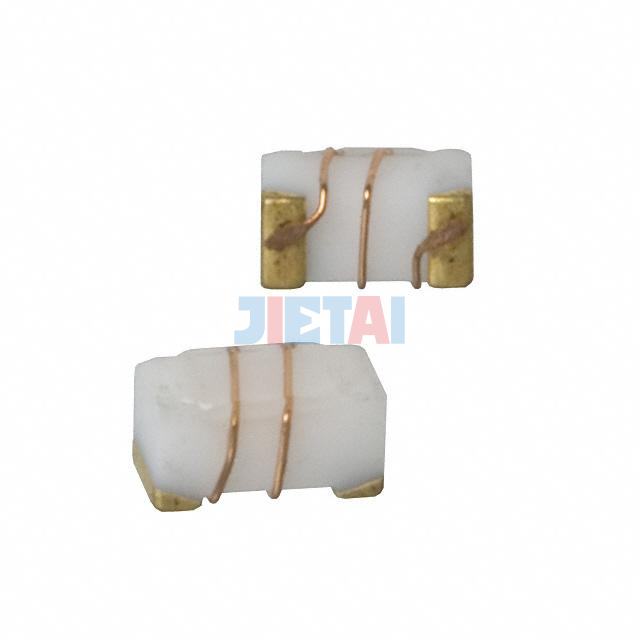

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | PE-0603CD2N2KTT |
| Datasheet | PE-0603CD2N2KTT datasheet |
| Description | FIXED IND 2.2NH 700MA 110 MOHM |
| Manufacturer | Pulse Electronics Network |
| Series | 0603CD |
| Part Status | Obsolete |
| Type | Wirewound |
| Material - Core | Ceramic |
| Inductance | 2.2nH |
| Tolerance | ±10% |
| Current Rating | 700mA |
| Current - Saturation | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 110 mOhm Max |
| Q @ Freq | 18 @ 250MHz |
| Frequency - Self Resonant | 6GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 250MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 (1608 Metric) |
| Size / Dimension | 0.071" L x 0.049" W (1.80mm x 1.24mm) |
| Height - Seated (Max) | 0.040" (1.02mm) |
