Product Introduction
NS12575T2R7NNV
- Part Number
- NS12575T2R7NNV
- Manufacturer/Brand
- Taiyo Yuden
- Description
- FIXED IND 2.7UH 7.69A 10.2MOHM
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- NS
- Quantity
- 12pcs Stock Available.

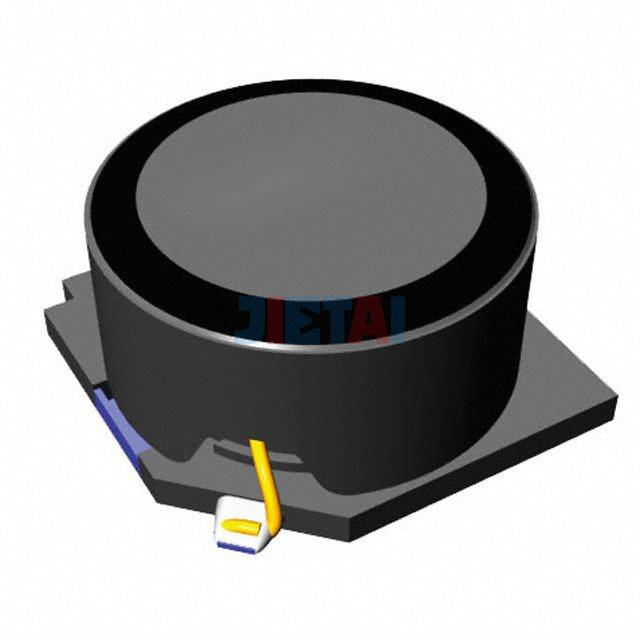

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | NS12575T2R7NNV |
| Datasheet | NS12575T2R7NNV datasheet |
| Description | FIXED IND 2.7UH 7.69A 10.2MOHM |
| Manufacturer | Taiyo Yuden |
| Series | NS |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 2.7µH |
| Tolerance | ±30% |
| Current Rating | 7.69A |
| Current - Saturation | 13.91A |
| Shielding | Shielded |
| DC Resistance (DCR) | 10.2 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 55.9MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height - Seated (Max) | 0.309" (7.85mm) |
