Product Introduction
AP725 15R F
- Part Number
- AP725 15R F
- Manufacturer/Brand
- Ohmite
- Description
- RES SMD 15 OHM 1 20W TO263
- Category
- Chip Resistor - Surface Mount
- RoHs Status
- Lead free / RoHS Compliant
- Series
- ARCOL, AP725
- Quantity
- 180pcs Stock Available.

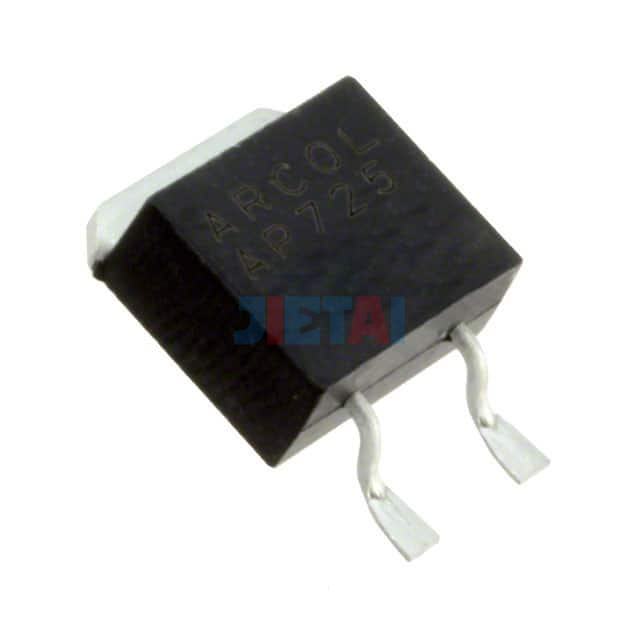

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | AP725 15R F |
| Datasheet | AP725 15R F datasheet |
| Description | RES SMD 15 OHM 1 20W TO263 |
| Manufacturer | Ohmite |
| Series | ARCOL, AP725 |
| Part Status | Active |
| Resistance | 15 Ohms |
| Tolerance | ±1% |
| Power (Watts) | 20W |
| Composition | Thick Film |
| Features | - |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-263 |
| Size / Dimension | 0.398" L x 0.177" W (10.10mm x 4.50mm) |
| Height - Seated (Max) | 0.192" (4.88mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
