Product Introduction
HDP26-24-47SE
- Part Number
- HDP26-24-47SE
- Manufacturer/Brand
- TE Connectivity Deutsch Connectors
- Description
- CONN PLG HSG FMALE 47POS INLINE
- Category
- Circular Connectors - Housings
- RoHs Status
- Lead free / RoHS Compliant
- Series
- HDP20
- Quantity
- 855pcs Stock Available.

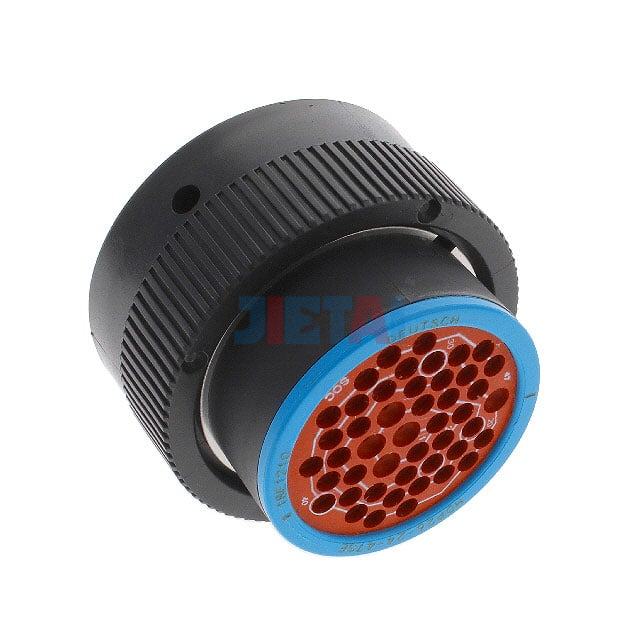

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | HDP26-24-47SE |
| Datasheet | HDP26-24-47SE datasheet |
| Description | CONN PLG HSG FMALE 47POS INLINE |
| Manufacturer | TE Connectivity Deutsch Connectors |
| Series | HDP20 |
| Part Status | Active |
| Connector Type | Plug Housing |
| Type | For Female Sockets |
| Number of Positions | 47 |
| Shell Size - Insert | 24-47 |
| Shell Size, MIL | - |
| Contact Type | Crimp |
| Contact Size | 16 (5), 20 (42) |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Fastening Type | Bayonet Lock |
| Orientation | Keyed |
| Shell Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Shell Finish | - |
| Housing Color | Black |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-1 |
| Features | Coupling Nut |
| Shielding | Unshielded |
