Product Introduction
TCSD-10-S-10.00-01-N
- Part Number
- TCSD-10-S-10.00-01-N
- Manufacturer/Brand
- Samtec Inc.
- Description
- 2MM DOUBLE ROW FEMALE IDC ASSEMB
- Category
- Rectangular Cable Assemblies
- RoHs Status
- Lead free / RoHS Compliant
- Series
- Tiger Eye™ TCSD
- Quantity
- 205pcs Stock Available.

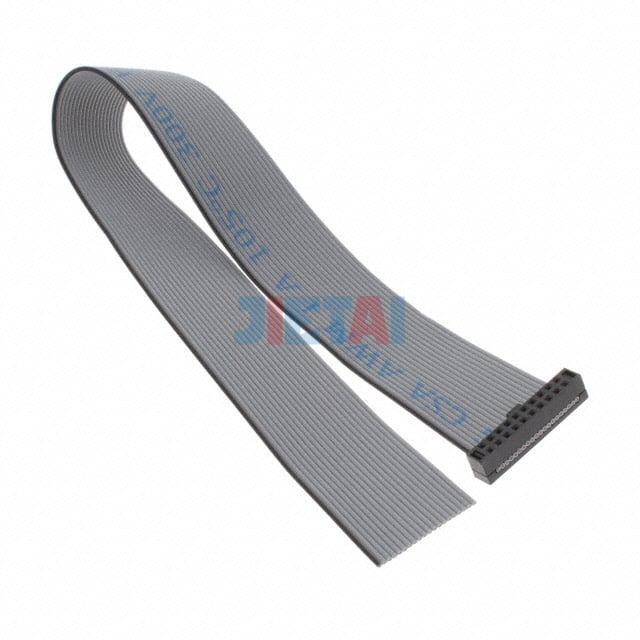

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | TCSD-10-S-10.00-01-N |
| Datasheet | TCSD-10-S-10.00-01-N datasheet |
| Description | 2MM DOUBLE ROW FEMALE IDC ASSEMB |
| Manufacturer | Samtec Inc. |
| Series | Tiger Eye™ TCSD |
| Part Status | Active |
| Connector Type | Socket to Cable |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Pitch - Connector | 0.079" (2.00mm) |
| Pitch - Cable | 0.039" (1.00mm) |
| Length | 0.833' (254.00mm, 10.00") |
| Features | Polarizing Key |
| Color | Gray, Ribbon |
| Shielding | Unshielded |
| Usage | - |
| Cable Termination | IDC |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
