Product Introduction
SN74AS158D
- Part Number
- SN74AS158D
- Manufacturer/Brand
- Texas Instruments
- Description
- IC DATA SEL/MUX QUAD 1-2 16-SOIC
- RoHs Status
- Lead free / RoHS Compliant
- Series
- 74AS
- Quantity
- 12pcs Stock Available.

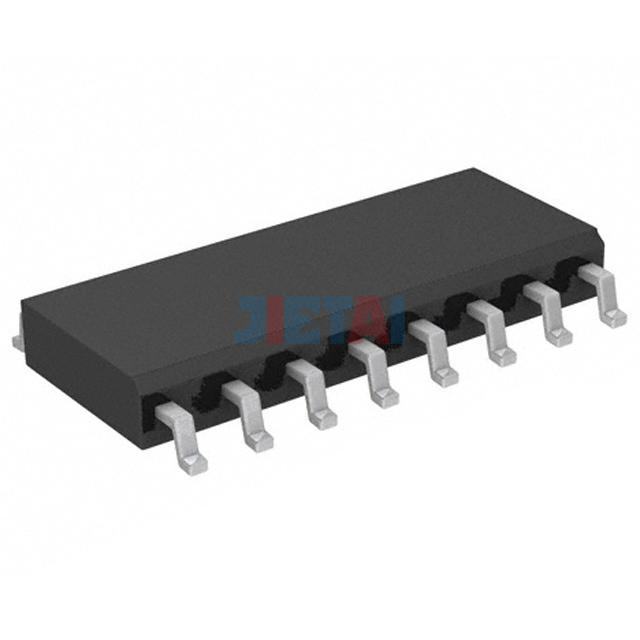

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | SN74AS158D |
| Description | IC DATA SEL/MUX QUAD 1-2 16-SOIC |
| Manufacturer | Texas Instruments |
| Series | 74AS |
| Part Status | Active |
| Type | Multiplexer |
| Circuit | 4 x 2:1 |
| Independent Circuits | 1 |
| Current - Output High, Low | 400µA, 8mA |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
