Product Introduction
RLP73N2AR22JTD
- Part Number
- RLP73N2AR22JTD
- Manufacturer/Brand
- TE Connectivity Passive Product
- Description
- RES 0.22 OHM 5 1/4W 0805
- Category
- Chip Resistor - Surface Mount
- RoHs Status
- Lead free / RoHS Compliant
- Series
- RL73, CGS
- Quantity
- 50167pcs Stock Available.

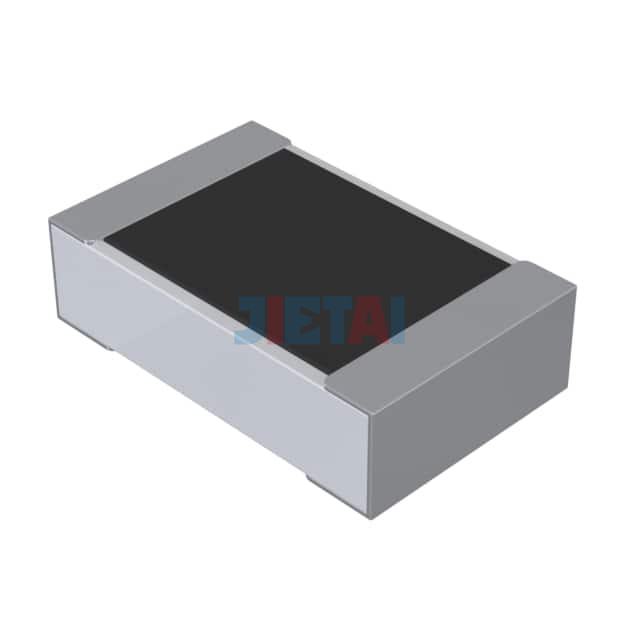

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | RLP73N2AR22JTD |
| Datasheet | RLP73N2AR22JTD datasheet |
| Description | RES 0.22 OHM 5 1/4W 0805 |
| Manufacturer | TE Connectivity Passive Product |
| Series | RL73, CGS |
| Part Status | Active |
| Resistance | 220 mOhms |
| Tolerance | ±5% |
| Power (Watts) | 0.25W, 1/4W |
| Composition | Thick Film |
| Features | Current Sense |
| Temperature Coefficient | ±300ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.026" (0.65mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
