Product Introduction
LHL10TB103J
- Part Number
- LHL10TB103J
- Manufacturer/Brand
- Taiyo Yuden
- Description
- FIXED IND 10MH 120MA 19 OHM TH
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- LH, L Type
- Quantity
- 619pcs Stock Available.

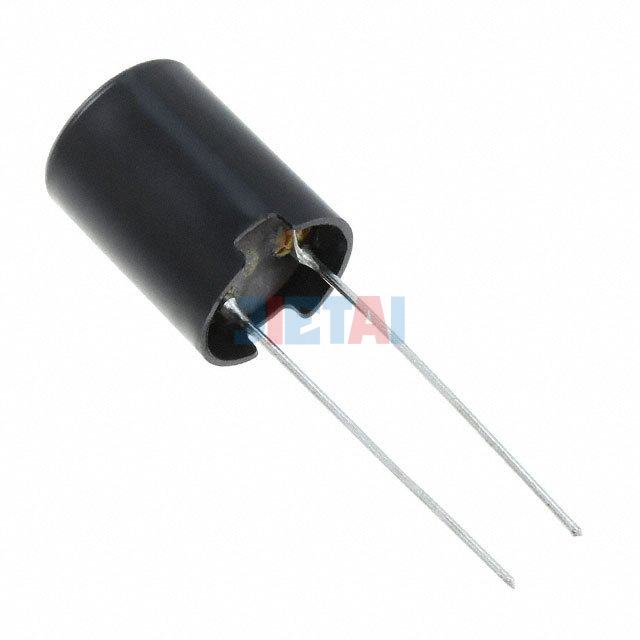

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | LHL10TB103J |
| Datasheet | LHL10TB103J datasheet |
| Description | FIXED IND 10MH 120MA 19 OHM TH |
| Manufacturer | Taiyo Yuden |
| Series | LH, L Type |
| Part Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 10mH |
| Tolerance | ±5% |
| Current Rating | 120mA |
| Current - Saturation | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 19 Ohm Max |
| Q @ Freq | 60 @ 79.6kHz |
| Frequency - Self Resonant | 290kHz |
| Ratings | - |
| Operating Temperature | -25°C ~ 105°C |
| Inductance Frequency - Test | 1kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Supplier Device Package | - |
| Size / Dimension | 0.433" Dia (11.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
