Product Introduction
M55342E05B825BRWS
- Part Number
- M55342E05B825BRWS
- Manufacturer/Brand
- Vishay Dale
- Description
- RES SMD 825KOHM 0.1 0.225W 2208
- Category
- Chip Resistor - Surface Mount
- RoHs Status
- Lead free / RoHS Compliant
- Series
- Military, MIL-PRF-55342, RM2208
- Quantity
- 22pcs Stock Available.

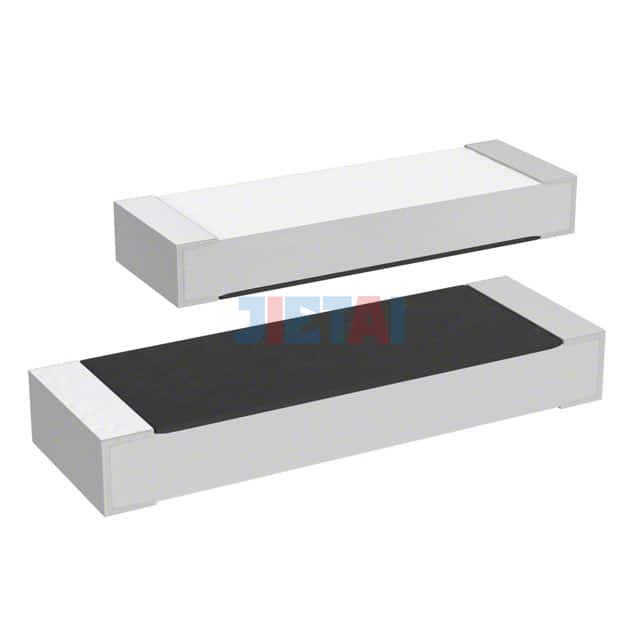

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | M55342E05B825BRWS |
| Datasheet | M55342E05B825BRWS datasheet |
| Description | RES SMD 825KOHM 0.1 0.225W 2208 |
| Manufacturer | Vishay Dale |
| Series | Military, MIL-PRF-55342, RM2208 |
| Part Status | Active |
| Resistance | 825 kOhms |
| Tolerance | ±0.1% |
| Power (Watts) | 0.225W |
| Composition | Thin Film |
| Features | Military, Non-Inductive |
| Temperature Coefficient | ±25ppm/°C |
| Operating Temperature | -55°C ~ 150°C |
| Package / Case | Nonstandard |
| Supplier Device Package | 2208 |
| Size / Dimension | 0.230" L x 0.075" W (5.84mm x 1.90mm) |
| Height - Seated (Max) | 0.033" (0.84mm) |
| Number of Terminations | 2 |
| Failure Rate | R (0.01%) |
