Home / Products / Capacitors / Aluminum Electrolytic Capacitors / ALS80A183QH200
Product Introduction
ALS80A183QH200
- Part Number
- ALS80A183QH200
- Manufacturer/Brand
- KEMET
- Description
- CAP ALUM 18000UF 20 200V SCREW
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- ALS80
- Quantity
- 24pcs Stock Available.

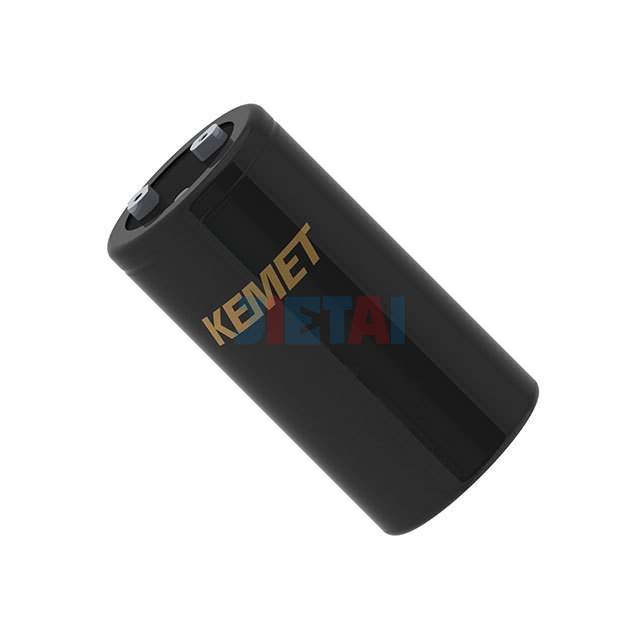

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | ALS80A183QH200 |
| Datasheet | ALS80A183QH200 datasheet |
| Description | CAP ALUM 18000UF 20 200V SCREW |
| Manufacturer | KEMET |
| Series | ALS80 |
| Part Status | Active |
| Capacitance | 18000µF |
| Tolerance | ±20% |
| Voltage - Rated | 200V |
| ESR (Equivalent Series Resistance) | 22 mOhm @ 100Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 18A @ 100Hz |
| Ripple Current @ High Frequency | 22.8A @ 10kHz |
| Impedance | 17 mOhms |
| Lead Spacing | 1.252" (31.80mm) |
| Size / Dimension | 3.543" Dia (90.00mm) |
| Height - Seated (Max) | 3.937" (100.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
