Product Introduction

SDR1005-3R3ML

Part Number
SDR1005-3R3ML
Manufacturer/Brand
Bourns Inc.
Description
FIXED IND 3.3UH 5A 15 MOHM SMD
Category
Fixed Inductors
RoHs Status
Lead free / RoHS Compliant
Series
SDR1005
Quantity
16351pcs Stock Available.

Quick Order

Company
Contact
Phone
Email
Country
Content

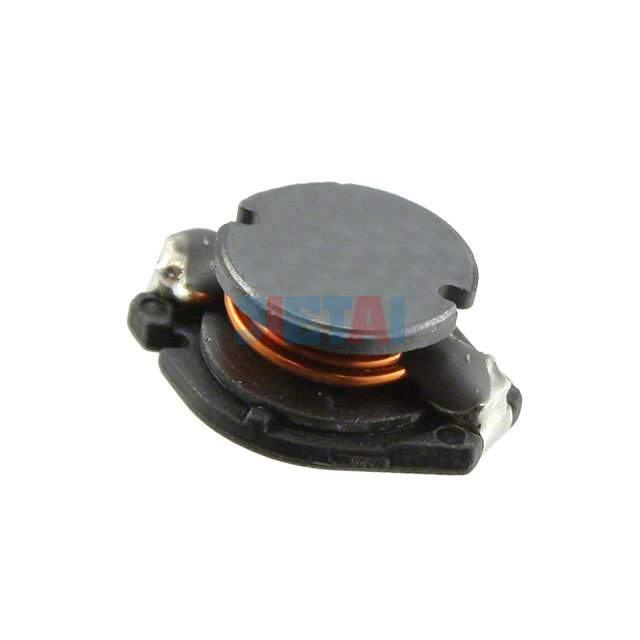

Images are for reference only
See Product Specifications

Product Specifications

Part Number SDR1005-3R3ML
Datasheet SDR1005-3R3ML datasheet
Description FIXED IND 3.3UH 5A 15 MOHM SMD
Manufacturer Bourns Inc.
Series SDR1005
Part Status Active
Type Wirewound
Material - Core Ferrite
Inductance 3.3µH
Tolerance ±20%
Current Rating 5A
Current - Saturation 6.4A
Shielding Unshielded
DC Resistance (DCR) 15 mOhm Max
Q @ Freq 45 @ 2.52MHz
Frequency - Self Resonant 54MHz
Ratings -
Operating Temperature -40°C ~ 125°C
Inductance Frequency - Test 1kHz
Features -
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.500" L x 0.394" W (12.70mm x 10.00mm)
Height - Seated (Max) 0.197" (5.00mm)
