Product Introduction
XG4H-4034
- Part Number
- XG4H-4034
- Manufacturer/Brand
- Omron Electronics Inc-EMC Div
- Description
- CONN RCPT 40POS 0.1 GOLD PCB R/A
- RoHs Status
- Lead free / RoHS Compliant
- Series
- XG4
- Quantity
- 12pcs Stock Available.

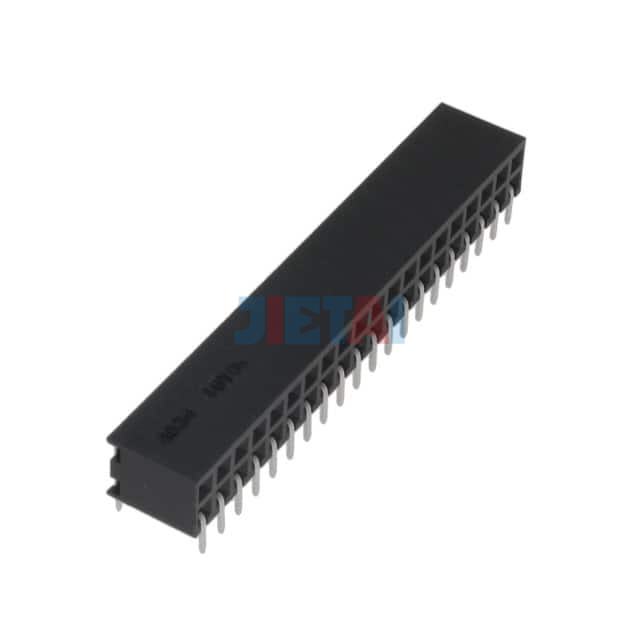

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | XG4H-4034 |
| Datasheet | XG4H-4034 datasheet |
| Description | CONN RCPT 40POS 0.1 GOLD PCB R/A |
| Manufacturer | Omron Electronics Inc-EMC Div |
| Series | XG4 |
| Part Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 40 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 5.90µin (0.150µm) |
| Insulation Color | Black |
| Insulation Height | 0.246" (6.25mm) |
| Contact Length - Post | 0.115" (2.92mm) |
| Operating Temperature | -55°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating | 3A |
| Voltage Rating | 300VAC |
