Home / Products / Capacitors / Aluminum Electrolytic Capacitors / 860160372007
Product Introduction
860160372007
- Part Number
- 860160372007
- Manufacturer/Brand
- Wurth Electronics Inc.
- Description
- CAP 47 UF 20 16 V
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- WCAP-ATLL
- Quantity
- 24pcs Stock Available.

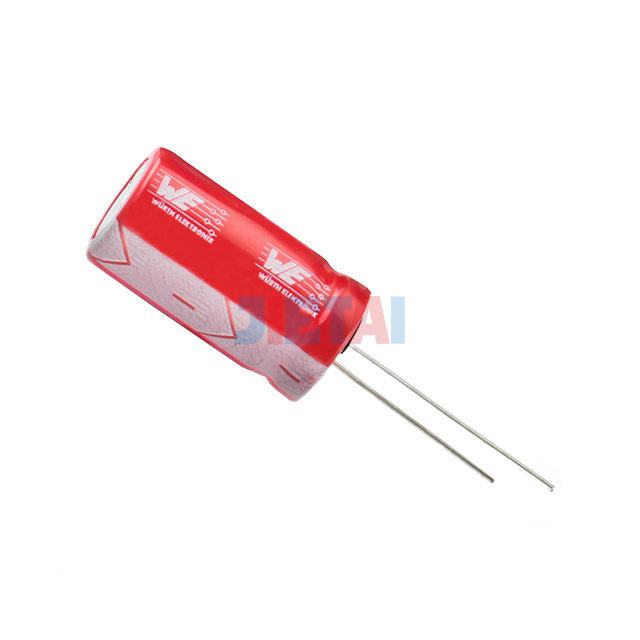

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | 860160372007 |
| Description | CAP 47 UF 20 16 V |
| Manufacturer | Wurth Electronics Inc. |
| Series | WCAP-ATLL |
| Part Status | Active |
| Capacitance | 47µF |
| Tolerance | ±20% |
| Voltage - Rated | 16V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 4000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 96.72mA @ 120Hz |
| Ripple Current @ High Frequency | 186mA @ 100kHz |
| Impedance | 1.35 Ohms |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
