Product Introduction
MHQ1005P1N6STD25
- Part Number
- MHQ1005P1N6STD25
- Manufacturer/Brand
- TDK Corporation
- Description
- FIXED IND 1.6NH 1A 40 MOHM SMD
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- MHQ-P
- Quantity
- 10pcs Stock Available.

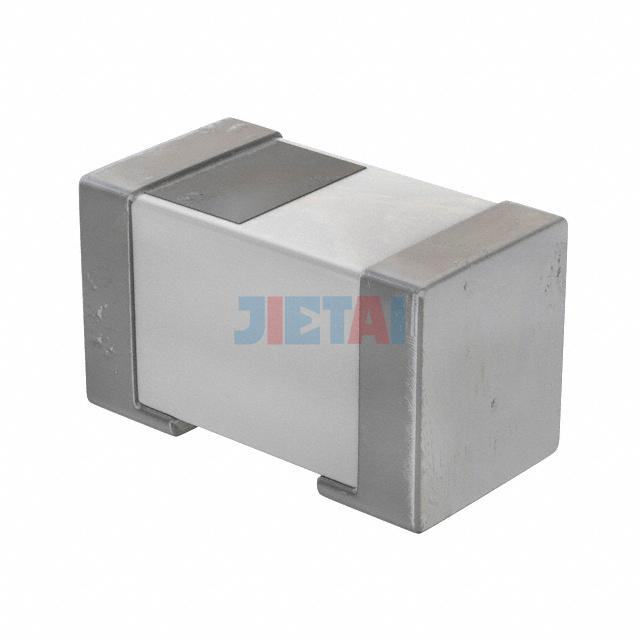

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | MHQ1005P1N6STD25 |
| Datasheet | MHQ1005P1N6STD25 datasheet |
| Description | FIXED IND 1.6NH 1A 40 MOHM SMD |
| Manufacturer | TDK Corporation |
| Series | MHQ-P |
| Part Status | Active |
| Type | Multilayer |
| Material - Core | Ceramic, Non-Magnetic |
| Inductance | 1.6nH |
| Tolerance | ±0.3nH |
| Current Rating | 1A |
| Current - Saturation | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 40 mOhm Max |
| Q @ Freq | 23 @ 250MHz |
| Frequency - Self Resonant | 10GHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.024" W (1.00mm x 0.60mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |
