Product Introduction
UUD1E100MCL1GS
- Part Number
- UUD1E100MCL1GS
- Manufacturer/Brand
- Nichicon
- Description
- CAP ALUM 10UF 20 25V SMD
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- UUD
- Quantity
- 4111pcs Stock Available.

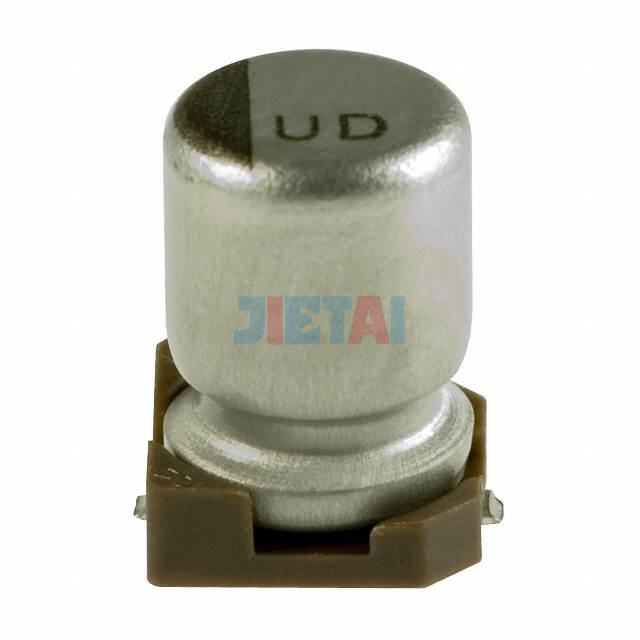

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | UUD1E100MCL1GS |
| Datasheet | UUD1E100MCL1GS datasheet |
| Description | CAP ALUM 10UF 20 25V SMD |
| Manufacturer | Nichicon |
| Series | UUD |
| Part Status | Active |
| Capacitance | 10µF |
| Tolerance | ±20% |
| Voltage - Rated | 25V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 40mA @ 120Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 1.8 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.228" (5.80mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
