Product Introduction
MBMK2520T1R5M
- Part Number
- MBMK2520T1R5M
- Manufacturer/Brand
- Taiyo Yuden
- Description
- FIXED IND 1.5UH 1.5A 106 MOHM
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- MCOIL™, MB
- Quantity
- 9pcs Stock Available.

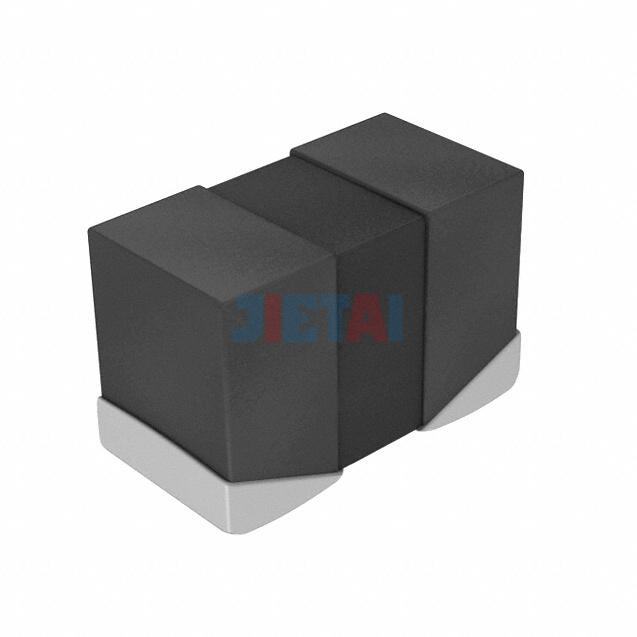

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | MBMK2520T1R5M |
| Datasheet | MBMK2520T1R5M datasheet |
| Description | FIXED IND 1.5UH 1.5A 106 MOHM |
| Manufacturer | Taiyo Yuden |
| Series | MCOIL™, MB |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Metal |
| Inductance | 1.5µH |
| Tolerance | ±20% |
| Current Rating | 1.5A |
| Current - Saturation | 2.05A |
| Shielding | Shielded |
| DC Resistance (DCR) | 106 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 1MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Supplier Device Package | 1008 (2520 Metric) |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
