Product Introduction
PE0603DRF7T0R005L
- Part Number
- PE0603DRF7T0R005L
- Manufacturer/Brand
- Yageo
- Description
- RES 0.005 OHM 0.5 1/3W 0603
- Category
- Chip Resistor - Surface Mount
- RoHs Status
- Lead free / RoHS Compliant
- Series
- PE
- Quantity
- 31pcs Stock Available.

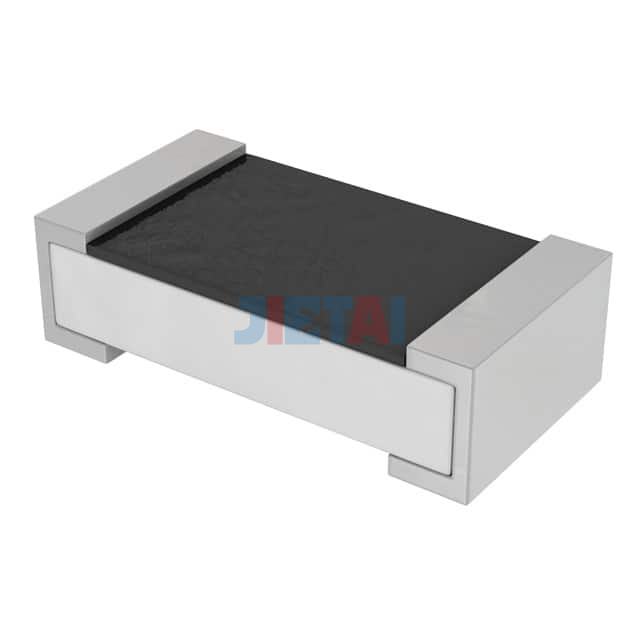

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | PE0603DRF7T0R005L |
| Datasheet | PE0603DRF7T0R005L datasheet |
| Description | RES 0.005 OHM 0.5 1/3W 0603 |
| Manufacturer | Yageo |
| Series | PE |
| Part Status | Active |
| Resistance | 5 mOhms |
| Tolerance | ±0.5% |
| Power (Watts) | 0.333W, 1/3W |
| Composition | Metal Foil |
| Features | Automotive AEC-Q200, Current Sense, Moisture Resistant |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 170°C |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Size / Dimension | 0.063" L x 0.030" W (1.60mm x 0.76mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
