Product Introduction
SDR7030-100M
- Part Number
- SDR7030-100M
- Manufacturer/Brand
- Bourns Inc.
- Description
- FIXED IND 10UH 1.5A 75 MOHM SMD
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- SDR7030
- Quantity
- 18pcs Stock Available.

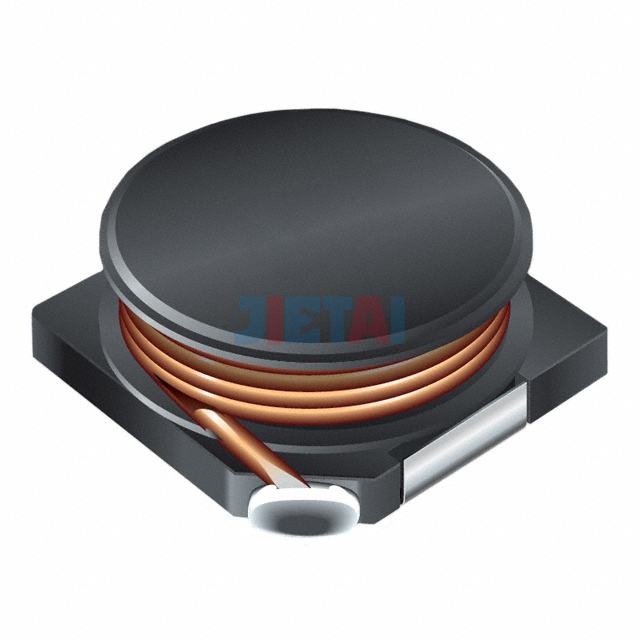

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | SDR7030-100M |
| Datasheet | SDR7030-100M datasheet |
| Description | FIXED IND 10UH 1.5A 75 MOHM SMD |
| Manufacturer | Bourns Inc. |
| Series | SDR7030 |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 10µH |
| Tolerance | ±20% |
| Current Rating | 1.5A |
| Current - Saturation | 1.6A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 75 mOhm Max |
| Q @ Freq | 16 @ 2.52MHz |
| Frequency - Self Resonant | 35MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.276" L x 0.276" W (7.00mm x 7.00mm) |
| Height - Seated (Max) | 0.130" (3.30mm) |
