Product Introduction

SI2307CDS-T1-E3

Part Number
SI2307CDS-T1-E3
Manufacturer/Brand
Vishay Siliconix
Description
MOSFET P-CH 30V 3.5A SOT23-3
Category
Transistors - FETs, MOSFETs - Single
RoHs Status
Lead free / RoHS Compliant
Series
TrenchFET®
Quantity
15101pcs Stock Available.

Quick Order

Company
Contact
Phone
Email
Country
Content

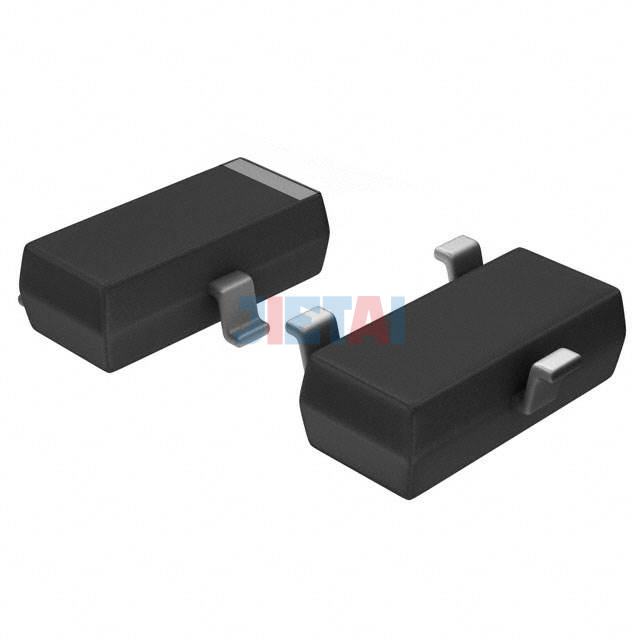

Images are for reference only
See Product Specifications

Product Specifications

Part Number SI2307CDS-T1-E3
Datasheet SI2307CDS-T1-E3 datasheet
Description MOSFET P-CH 30V 3.5A SOT23-3
Manufacturer Vishay Siliconix
Series TrenchFET®
Part Status Active
FET Type P-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30V
Current - Continuous Drain (Id) @ 25°C 3.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 88 mOhm @ 3.5A, 10V
Vgs(th) (Max) @ Id 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 6.2nC @ 4.5V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 340pF @ 15V
FET Feature -
Power Dissipation (Max) 1.1W (Ta), 1.8W (Tc)
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Supplier Device Package SOT-23-3 (TO-236)
Package / Case TO-236-3, SC-59, SOT-23-3
