Product Introduction
EET-HC2E821KA
- Part Number
- EET-HC2E821KA
- Manufacturer/Brand
- Panasonic Electronic Components
- Description
- CAP ALUM 820UF 20 250V SNAP
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- TS-HC
- Quantity
- 1374pcs Stock Available.

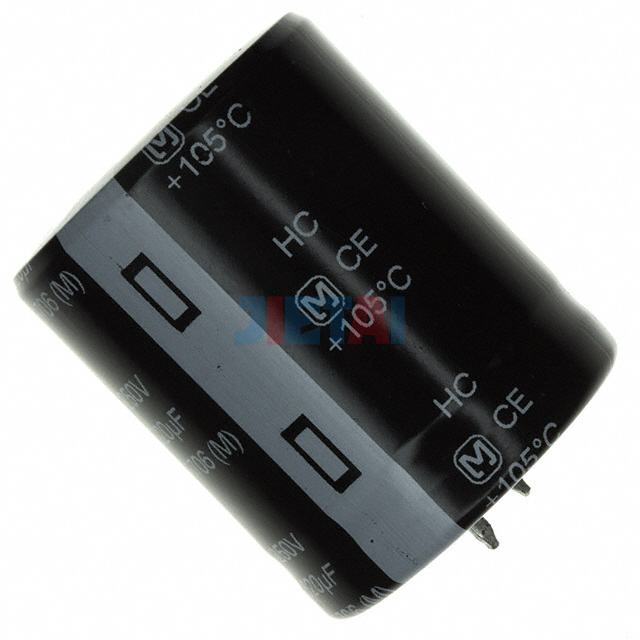

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | EET-HC2E821KA |
| Datasheet | EET-HC2E821KA datasheet |
| Description | CAP ALUM 820UF 20 250V SNAP |
| Manufacturer | Panasonic Electronic Components |
| Series | TS-HC |
| Part Status | Obsolete |
| Capacitance | 820µF |
| Tolerance | ±20% |
| Voltage - Rated | 250V |
| ESR (Equivalent Series Resistance) | 202 mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2A @ 120Hz |
| Ripple Current @ High Frequency | 2.8A @ 10kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
