Product Introduction
BD3523HFN-TR
- Part Number
- BD3523HFN-TR
- Manufacturer/Brand
- Rohm Semiconductor
- Description
- IC REG LINEAR POS ADJ 2A 8HSON
- Category
- PMIC - Voltage Regulators - Linear
- RoHs Status
- Lead free / RoHS Compliant
- Series
- -
- Quantity
- 8pcs Stock Available.

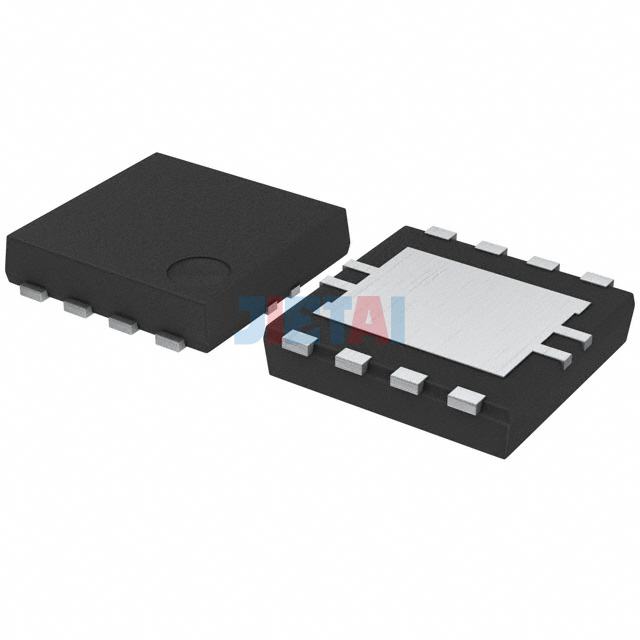

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | BD3523HFN-TR |
| Datasheet | BD3523HFN-TR datasheet |
| Description | IC REG LINEAR POS ADJ 2A 8HSON |
| Manufacturer | Rohm Semiconductor |
| Series | - |
| Part Status | Active |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 4.5V |
| Voltage - Output (Min/Fixed) | 0.65V |
| Voltage - Output (Max) | 2.7V |
| Voltage Dropout (Max) | - |
| Current - Output | 2A |
| Current - Quiescent (Iq) | 0.7mA |
| Current - Supply (Max) | 1.2mA |
| PSRR | - |
| Control Features | Enable, Soft Start |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -10°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-UDFN Exposed Pad |
| Supplier Device Package | 8-HSON |
