Home / Products / Capacitors / Aluminum Electrolytic Capacitors / LNT1V334MSE
Product Introduction
LNT1V334MSE
- Part Number
- LNT1V334MSE
- Manufacturer/Brand
- Nichicon
- Description
- CAP ALUM 330000UF 20 35V SCREW
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- LNT
- Quantity
- 182pcs Stock Available.

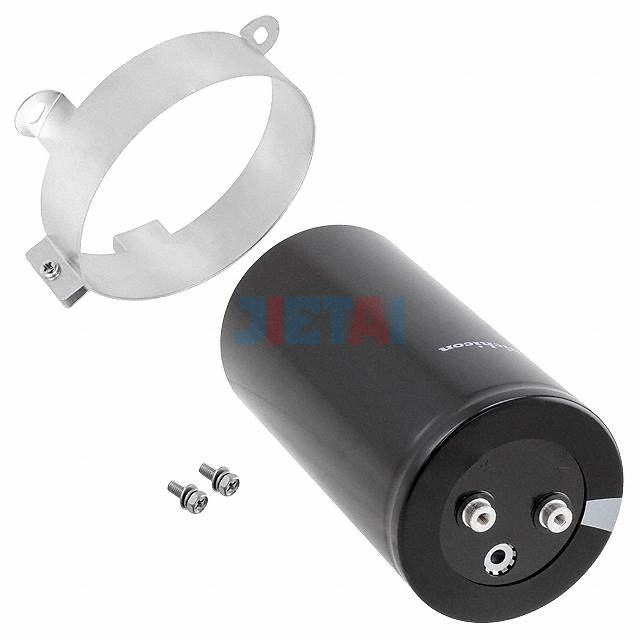

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | LNT1V334MSE |
| Datasheet | LNT1V334MSE datasheet |
| Description | CAP ALUM 330000UF 20 35V SCREW |
| Manufacturer | Nichicon |
| Series | LNT |
| Part Status | Active |
| Capacitance | 330000µF |
| Tolerance | ±20% |
| Voltage - Rated | 35V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 21.3A @ 120Hz |
| Ripple Current @ High Frequency | 24.495A @ 10kHz |
| Impedance | - |
| Lead Spacing | 1.252" (31.80mm) |
| Size / Dimension | 3.543" Dia (90.00mm) |
| Height - Seated (Max) | 6.811" (173.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
