Product Introduction
MC705JP7CPE
- Part Number
- MC705JP7CPE
- Manufacturer/Brand
- NXP USA Inc.
- Description
- IC MCU 8BIT 6KB OTP 28DIP
- Category
- Embedded - Microcontrollers
- RoHs Status
- Lead free / RoHS Compliant
- Series
- HC05
- Quantity
- 9773pcs Stock Available.

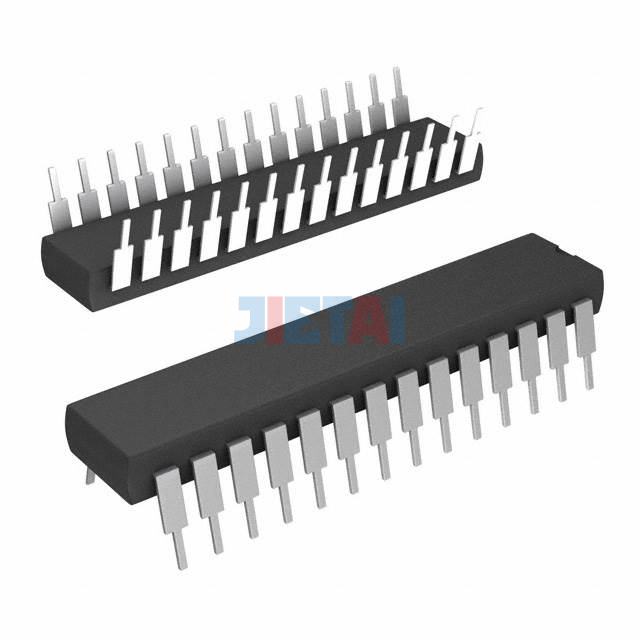

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | MC705JP7CPE |
| Datasheet | MC705JP7CPE datasheet |
| Description | IC MCU 8BIT 6KB OTP 28DIP |
| Manufacturer | NXP USA Inc. |
| Series | HC05 |
| Part Status | Obsolete |
| Core Processor | HC05 |
| Core Size | 8-Bit |
| Speed | 2.1MHz |
| Connectivity | SIO |
| Peripherals | POR, Temp Sensor, WDT |
| Number of I/O | 22 |
| Program Memory Size | 6KB (6K x 8) |
| Program Memory Type | OTP |
| EEPROM Size | - |
| RAM Size | 224 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 4x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package / Case | Through Hole |
| Supplier Device Package | 28-DIP (0.600", 15.24mm) |
| Base Part Number | 28-PDIP |
