Product Introduction
LQP03TN7N5J02D
- Part Number
- LQP03TN7N5J02D
- Manufacturer/Brand
- Murata Electronics North America
- Description
- FIXED IND 7.5NH 300MA 600 MOHM
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- LQP03
- Quantity
- 9pcs Stock Available.

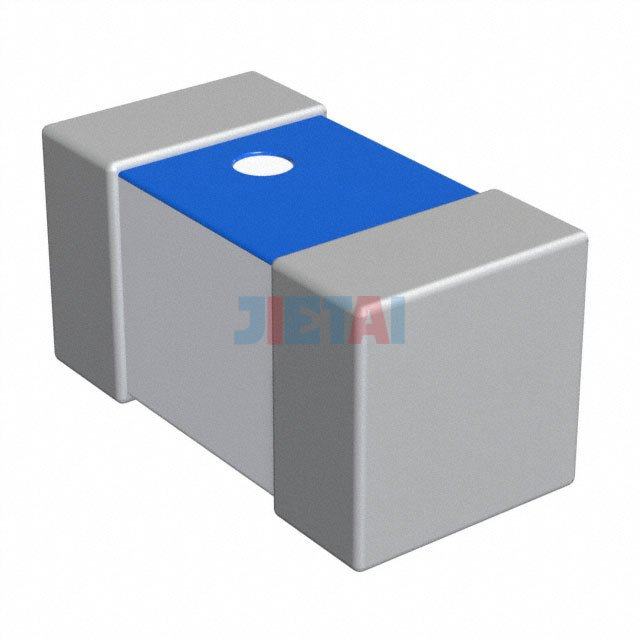

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | LQP03TN7N5J02D |
| Datasheet | LQP03TN7N5J02D datasheet |
| Description | FIXED IND 7.5NH 300MA 600 MOHM |
| Manufacturer | Murata Electronics North America |
| Series | LQP03 |
| Part Status | Active |
| Type | Thin Film |
| Material - Core | Non-Magnetic |
| Inductance | 7.5nH |
| Tolerance | ±5% |
| Current Rating | 300mA |
| Current - Saturation | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 600 mOhm Max |
| Q @ Freq | 14 @ 500MHz |
| Frequency - Self Resonant | 3.7GHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 500MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | 0201 (0603 Metric) |
| Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Height - Seated (Max) | 0.013" (0.33mm) |
