Product Introduction
FD5-24
- Part Number
- FD5-24
- Manufacturer/Brand
- Triad Magnetics
- Description
- XFMR LAM 24VCT 12VA CHAS MNT
- Category
- Power Transformers
- RoHs Status
- Lead free / RoHS Compliant
- Series
- Quick Pack
- Quantity
- 526pcs Stock Available.

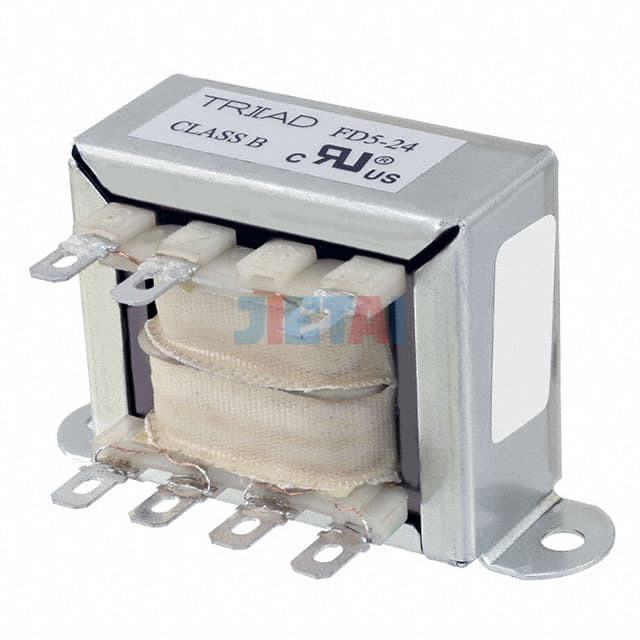

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | FD5-24 |
| Datasheet | FD5-24 datasheet |
| Description | XFMR LAM 24VCT 12VA CHAS MNT |
| Manufacturer | Triad Magnetics |
| Series | Quick Pack |
| Part Status | Active |
| Type | Laminated Core |
| Voltage - Primary | 115V, 230V |
| Voltage - Secondary (Full Load) | 24V |
| Current - Output (Max) | 500mA |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Single |
| Center Tap | Yes |
| Power - Max | 12VA |
| Mounting Type | Chassis Mount |
| Termination Style | Solder, Quick Connect - 0.187" (4.7mm) |
| Size / Dimension | 71.42mm L x 34.93mm W |
| Height - Seated (Max) | 41.28mm |
| Voltage - Isolation | 2500VAC |
| Weight | 0.7 lb (317.51g) |
