Home / Products / Inductors, Coils, Chokes / Fixed Inductors / SRN6045-8R2Y
Product Introduction
SRN6045-8R2Y
- Part Number
- SRN6045-8R2Y
- Manufacturer/Brand
- Bourns Inc.
- Description
- FIXED IND 8.2UH 2.7A 55 MOHM SMD
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- SRN6045
- Quantity
- 17101pcs Stock Available.

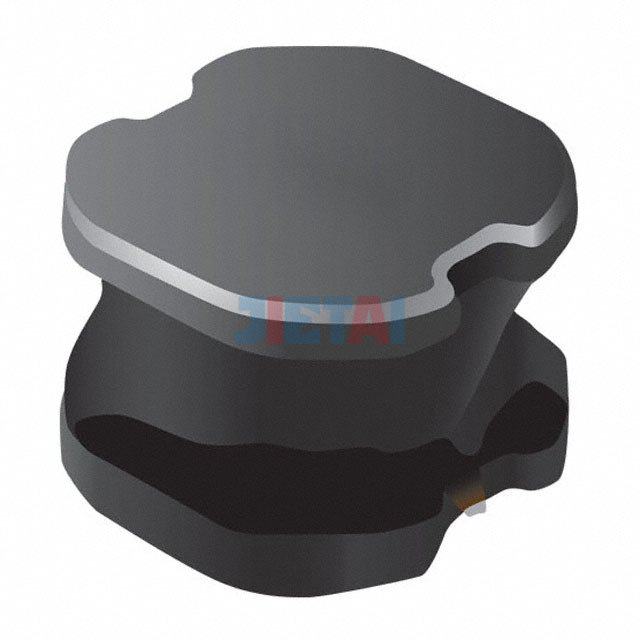

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | SRN6045-8R2Y |
| Datasheet | SRN6045-8R2Y datasheet |
| Description | FIXED IND 8.2UH 2.7A 55 MOHM SMD |
| Manufacturer | Bourns Inc. |
| Series | SRN6045 |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 8.2µH |
| Tolerance | ±30% |
| Current Rating | 2.7A |
| Current - Saturation | 3.3A |
| Shielding | Semi-Shielded |
| DC Resistance (DCR) | 55 mOhm Max |
| Q @ Freq | 15 @ 7.96MHz |
| Frequency - Self Resonant | 18MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Height - Seated (Max) | 0.177" (4.50mm) |
