Product Introduction
CM100505-8N2JL
- Part Number
- CM100505-8N2JL
- Manufacturer/Brand
- Bourns Inc.
- Description
- FIXED IND 8.2NH 320MA 350 MOHM
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- CM100505
- Quantity
- 30pcs Stock Available.

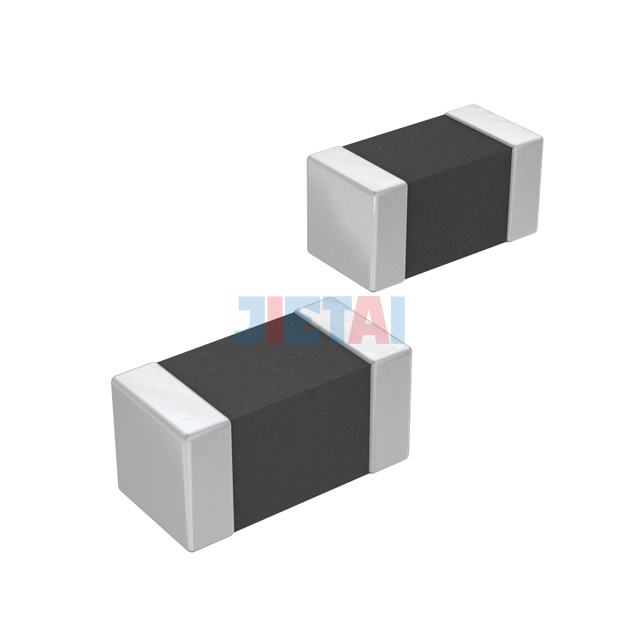

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | CM100505-8N2JL |
| Datasheet | CM100505-8N2JL datasheet |
| Description | FIXED IND 8.2NH 320MA 350 MOHM |
| Manufacturer | Bourns Inc. |
| Series | CM100505 |
| Part Status | Obsolete |
| Type | Wirewound |
| Material - Core | Alumina |
| Inductance | 8.2nH |
| Tolerance | ±5% |
| Current Rating | 320mA |
| Current - Saturation | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 350 mOhm Max |
| Q @ Freq | 8 @ 100MHz |
| Frequency - Self Resonant | 3.5GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 100°C |
| Inductance Frequency - Test | 100MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |
