Home / Products / Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets / 1755956
Product Introduction
1755956
- Part Number
- 1755956
- Manufacturer/Brand
- Phoenix Contact
- Description
- TERM BLOCK HDR 24POS VERT 5.08MM
- RoHs Status
- Lead free / RoHS Compliant
- Series
- COMBICON MSTBVA
- Quantity
- 208pcs Stock Available.

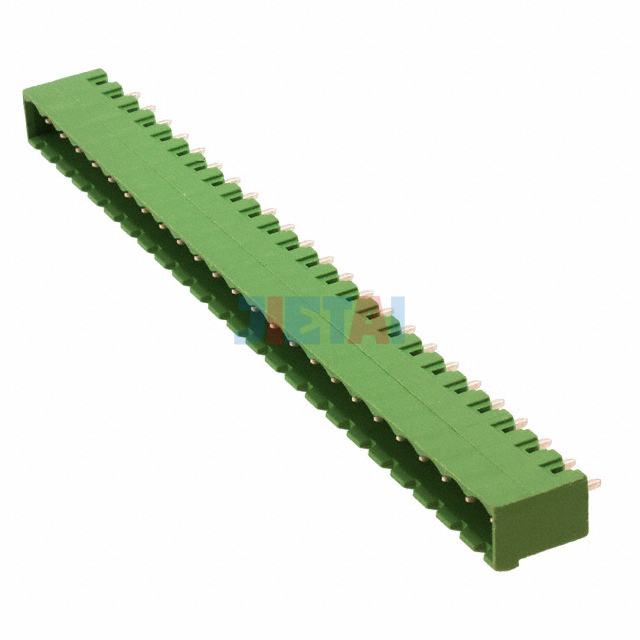

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | 1755956 |
| Datasheet | 1755956 datasheet |
| Description | TERM BLOCK HDR 24POS VERT 5.08MM |
| Manufacturer | Phoenix Contact |
| Series | COMBICON MSTBVA |
| Part Status | Active |
| Type | Header, Male Pins, Shrouded (4 Side) |
| Number of Positions | 24 |
| Positions Per Level | 24 |
| Number of Levels | 1 |
| Pitch | 0.200" (5.08mm) |
| Header Orientation | Vertical |
| Plug Wire Entry | - |
| Termination Style | Solder |
| Mounting Type | Through Hole |
| Current - IEC | 12A |
| Voltage - IEC | 630V |
| Current - UL | 12A |
| Voltage - UL | 300V |
| Wire Gauge or Range - AWG | - |
| Wire Gauge or Range - mm² | - |
| Color | Green |
| Operating Temperature | - |
| Contact Mating Finish | Tin |
| Features | - |
