Home / Products / Crystals, Oscillators, Resonators / Oscillators / KT2520Y40000ECV28TBA
Product Introduction
KT2520Y40000ECV28TBA
- Part Number
- KT2520Y40000ECV28TBA
- Manufacturer/Brand
- Kyocera International Inc. Electronic Components
- Description
- XTAL OSC TCXO 40.0000MHZ SNWV
- Category
- Oscillators
- RoHs Status
- Lead free / RoHS Compliant
- Series
- KT2520Y, Kyocera
- Quantity
- 5720pcs Stock Available.

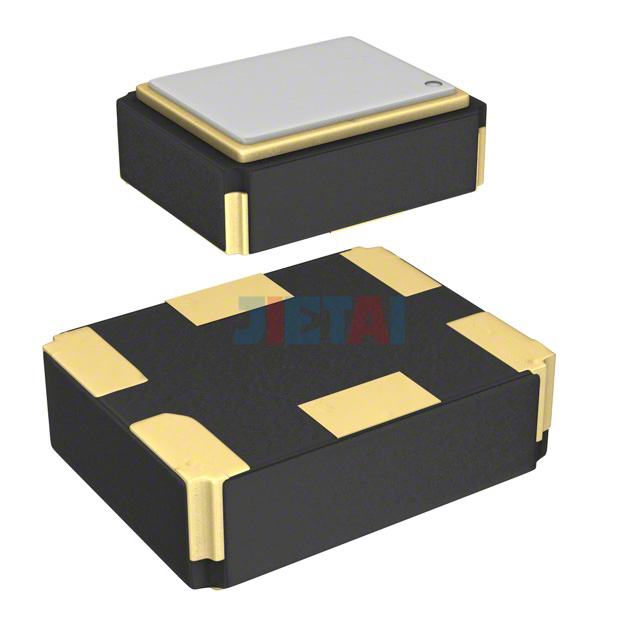

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | KT2520Y40000ECV28TBA |
| Datasheet | KT2520Y40000ECV28TBA datasheet |
| Description | XTAL OSC TCXO 40.0000MHZ SNWV |
| Manufacturer | Kyocera International Inc. Electronic Components |
| Series | KT2520Y, Kyocera |
| Part Status | Obsolete |
| Base Resonator | Crystal |
| Type | TCXO |
| Frequency | 40MHz |
| Function | - |
| Output | Clipped Sine Wave |
| Voltage - Supply | 2.8V |
| Frequency Stability | ±2.5ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -30°C ~ 80°C |
| Current - Supply (Max) | 2mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.035" (0.90mm) |
