Product Introduction
LQW15AN27NG00D
- Part Number
- LQW15AN27NG00D
- Manufacturer/Brand
- Murata Electronics North America
- Description
- FIXED IND 27NH 280MA 520 MOHM
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- LQW15
- Quantity
- 60105pcs Stock Available.

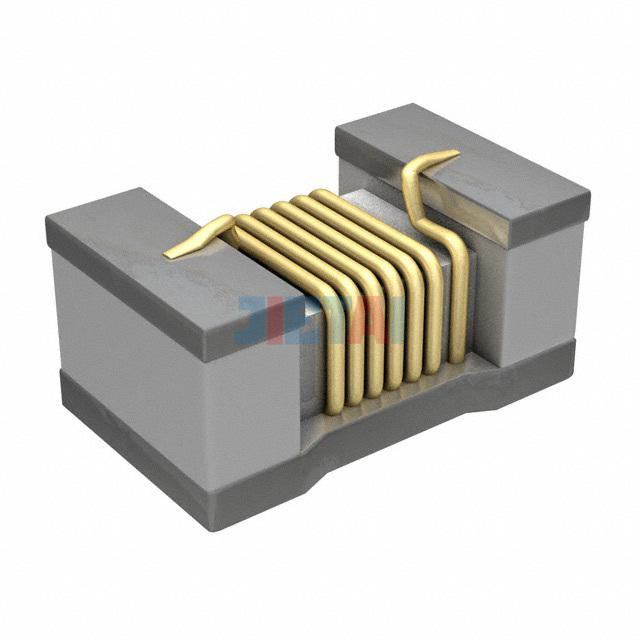

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | LQW15AN27NG00D |
| Datasheet | LQW15AN27NG00D datasheet |
| Description | FIXED IND 27NH 280MA 520 MOHM |
| Manufacturer | Murata Electronics North America |
| Series | LQW15 |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Non-Magnetic |
| Inductance | 27nH |
| Tolerance | ±2% |
| Current Rating | 280mA |
| Current - Saturation | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 520 mOhm Max |
| Q @ Freq | 25 @ 250MHz |
| Frequency - Self Resonant | 3.5GHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |
