Home / Products / Capacitors / Aluminum Electrolytic Capacitors / URY1A222MHD1TN
Product Introduction
URY1A222MHD1TN
- Part Number
- URY1A222MHD1TN
- Manufacturer/Brand
- Nichicon
- Description
- CAP ALUM 2200UF 20 10V RADIAL
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- URY
- Quantity
- 7760pcs Stock Available.

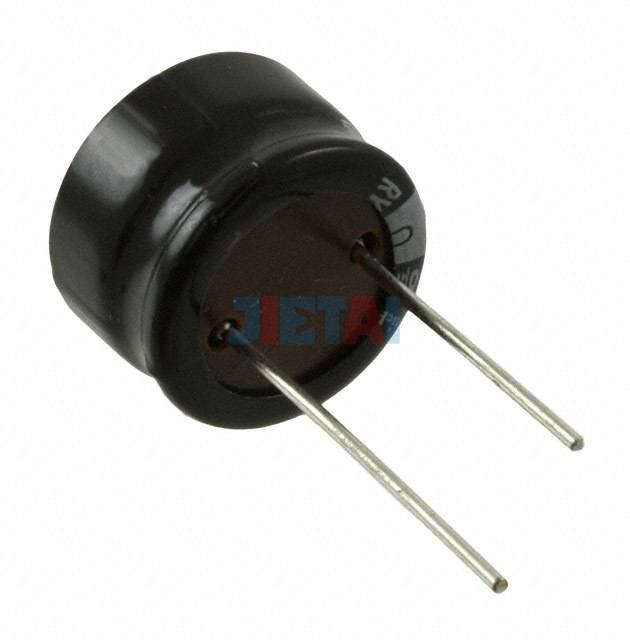

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | URY1A222MHD1TN |
| Datasheet | URY1A222MHD1TN datasheet |
| Description | CAP ALUM 2200UF 20 10V RADIAL |
| Manufacturer | Nichicon |
| Series | URY |
| Part Status | Obsolete |
| Capacitance | 2200µF |
| Tolerance | ±20% |
| Voltage - Rated | 10V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 820mA @ 120Hz |
| Ripple Current @ High Frequency | 943mA @ 10kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
