Product Introduction
UBT2V470MHD8
- Part Number
- UBT2V470MHD8
- Manufacturer/Brand
- Nichicon
- Description
- CAP ALUM 47UF 20 350V RADIAL
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- UBT
- Quantity
- 166pcs Stock Available.

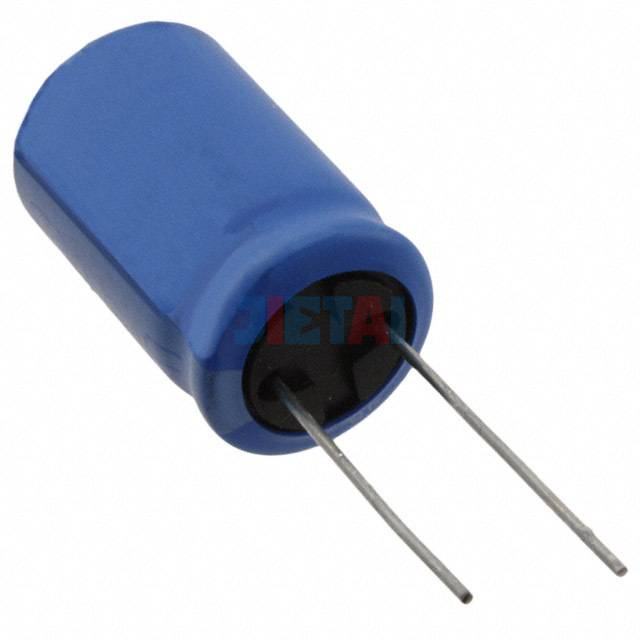

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | UBT2V470MHD8 |
| Datasheet | UBT2V470MHD8 datasheet |
| Description | CAP ALUM 47UF 20 350V RADIAL |
| Manufacturer | Nichicon |
| Series | UBT |
| Part Status | Active |
| Capacitance | 47µF |
| Tolerance | ±20% |
| Voltage - Rated | 350V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -25°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 243mA @ 120Hz |
| Ripple Current @ High Frequency | 364.5mA @ 100kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.319" (33.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
