Home / Products / Capacitors / Aluminum Electrolytic Capacitors / 109LBB035M2CE
Product Introduction
109LBB035M2CE
- Part Number
- 109LBB035M2CE
- Manufacturer/Brand
- Illinois Capacitor
- Description
- CAP ALUM 10000UF 20 35V SNAP
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- LBB
- Quantity
- 22pcs Stock Available.

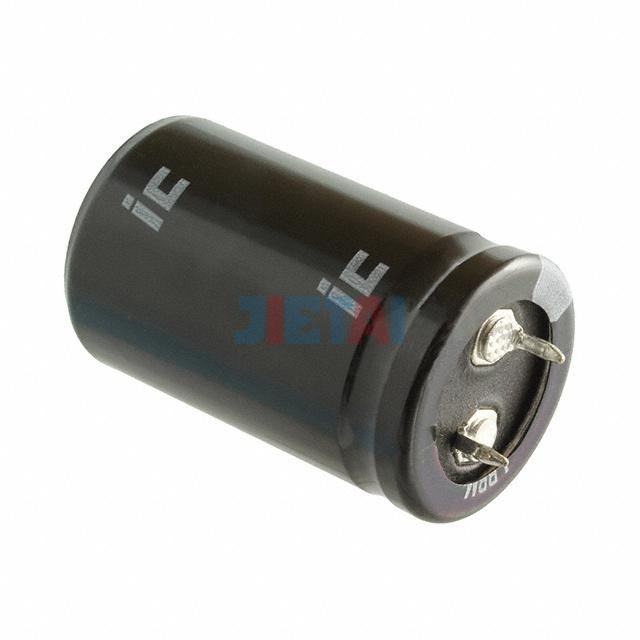

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | 109LBB035M2CE |
| Datasheet | 109LBB035M2CE datasheet |
| Description | CAP ALUM 10000UF 20 35V SNAP |
| Manufacturer | Illinois Capacitor |
| Series | LBB |
| Part Status | Active |
| Capacitance | 10000µF |
| Tolerance | ±20% |
| Voltage - Rated | 35V |
| ESR (Equivalent Series Resistance) | 41.45 mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.06A @ 120Hz |
| Ripple Current @ High Frequency | 3.825A @ 10kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
