Product Introduction
SD25-R82-R
- Part Number
- SD25-R82-R
- Manufacturer/Brand
- Eaton - Electronics Division
- Description
- FIXED IND 820NH 3.58A 20.8 MOHM
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- SD
- Quantity
- 16pcs Stock Available.

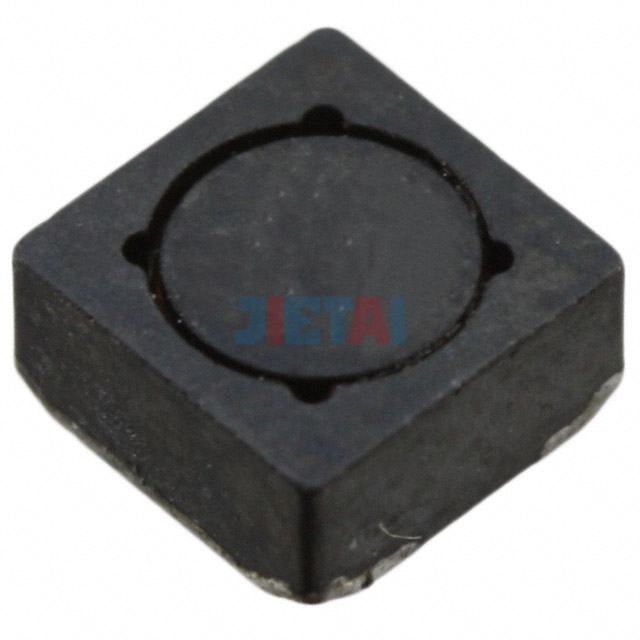

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | SD25-R82-R |
| Datasheet | SD25-R82-R datasheet |
| Description | FIXED IND 820NH 3.58A 20.8 MOHM |
| Manufacturer | Eaton - Electronics Division |
| Series | SD |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 820nH |
| Tolerance | ±20% |
| Current Rating | 3.58A |
| Current - Saturation | 4.67A |
| Shielding | Shielded |
| DC Resistance (DCR) | 20.8 mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 100kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.205" L x 0.205" W (5.20mm x 5.20mm) |
| Height - Seated (Max) | 0.098" (2.50mm) |
