Home / Products / Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear / NCP1117DTAT5G
Product Introduction
NCP1117DTAT5G
- Part Number
- NCP1117DTAT5G
- Manufacturer/Brand
- ON Semiconductor
- Description
- IC REG LINEAR POS ADJ 1A DPAK
- Category
- PMIC - Voltage Regulators - Linear
- RoHs Status
- Lead free / RoHS Compliant
- Series
- -
- Quantity
- 2677pcs Stock Available.

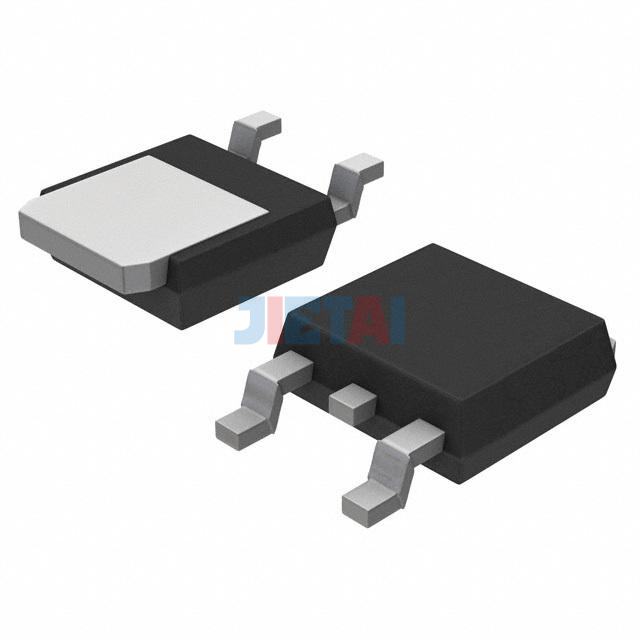

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | NCP1117DTAT5G |
| Datasheet | NCP1117DTAT5G datasheet |
| Description | IC REG LINEAR POS ADJ 1A DPAK |
| Manufacturer | ON Semiconductor |
| Series | - |
| Part Status | Active |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 20V |
| Voltage - Output (Min/Fixed) | 1.25V |
| Voltage - Output (Max) | 18.8V |
| Voltage Dropout (Max) | 1.2V @ 800mA |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 10mA |
| Current - Supply (Max) | - |
| PSRR | 73dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | 0°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | DPAK |
