Product Introduction
5015310310
- Part Number
- 5015310310
- Manufacturer/Brand
- Molex
- Description
- CONN PLUG 30POS VERT DUAL SMD
- RoHs Status
- Lead free / RoHS Compliant
- Series
- SlimStack 501531
- Quantity
- 17pcs Stock Available.

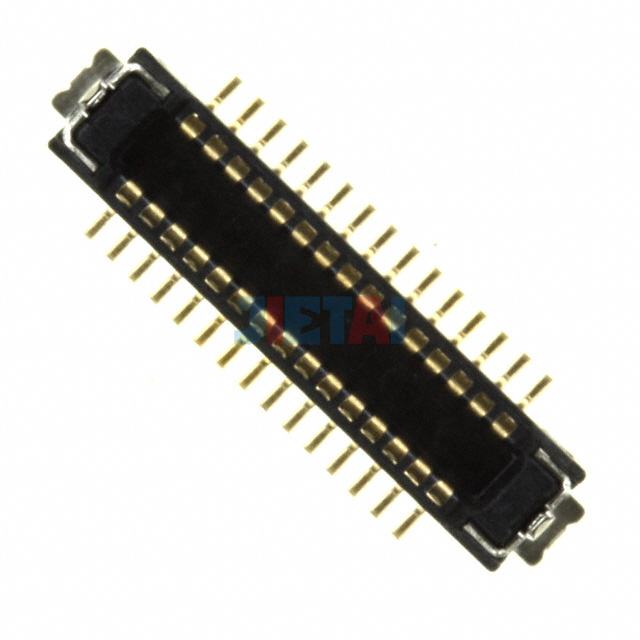

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | 5015310310 |
| Datasheet | 5015310310 datasheet |
| Description | CONN PLUG 30POS VERT DUAL SMD |
| Manufacturer | Molex |
| Series | SlimStack 501531 |
| Part Status | Active |
| Connector Type | Plug, Outer Shroud Contacts |
| Number of Positions | 30 |
| Pitch | 0.016" (0.40mm) |
| Number of Rows | 2 |
| Mounting Type | Surface Mount |
| Features | Solder Retention |
| Contact Finish | Gold |
| Contact Finish Thickness | 8.00µin (0.203µm) |
| Mated Stacking Heights | 1.3mm |
| Height Above Board | 0.041" (1.05mm) |
