Product Introduction

HCP0704-2R3-R

Part Number
HCP0704-2R3-R
Manufacturer/Brand
Eaton - Electronics Division
Description
FIXED IND 2.3UH 7.5A 16.5 MOHM
Category
Fixed Inductors
RoHs Status
Lead free / RoHS Compliant
Series
HCP0704
Quantity
16pcs Stock Available.

Quick Order

Company
Contact
Phone
Email
Country
Content

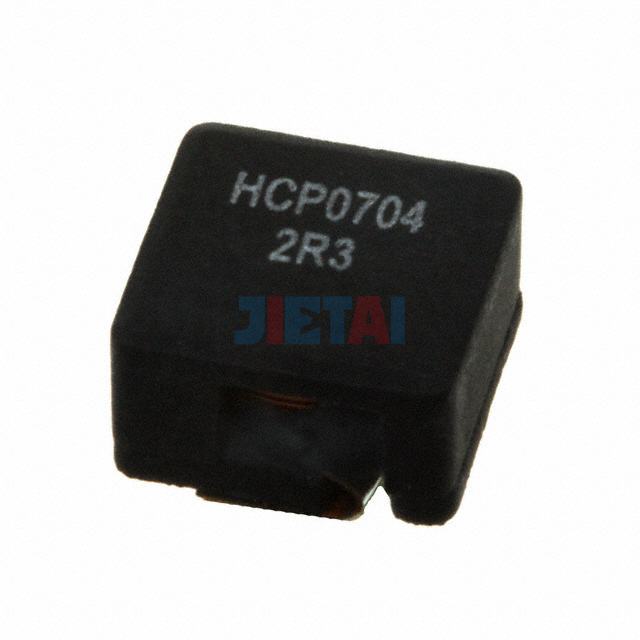

Images are for reference only
See Product Specifications

Product Specifications

Part Number HCP0704-2R3-R
Datasheet HCP0704-2R3-R datasheet
Description FIXED IND 2.3UH 7.5A 16.5 MOHM
Manufacturer Eaton - Electronics Division
Series HCP0704
Part Status Active
Type Wirewound
Material - Core Iron Powder
Inductance 2.3µH
Tolerance ±25%
Current Rating 7.5A
Current - Saturation 11.5A
Shielding Shielded
DC Resistance (DCR) 16.5 mOhm
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Operating Temperature -40°C ~ 155°C
Inductance Frequency - Test 100kHz
Features -
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.268" L x 0.268" W (6.80mm x 6.80mm)
Height - Seated (Max) 0.157" (4.00mm)
