Product Introduction
HCM0703-R68-R
- Part Number
- HCM0703-R68-R
- Manufacturer/Brand
- Eaton - Electronics Division
- Description
- FIXED IND 680NH 15.5A 5.5 MOHM
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- HCM0703
- Quantity
- 11pcs Stock Available.

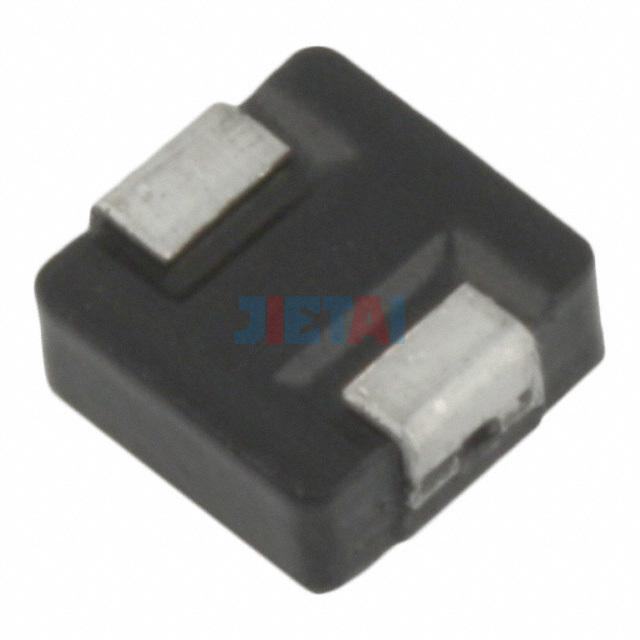

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | HCM0703-R68-R |
| Datasheet | HCM0703-R68-R datasheet |
| Description | FIXED IND 680NH 15.5A 5.5 MOHM |
| Manufacturer | Eaton - Electronics Division |
| Series | HCM0703 |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Iron Powder |
| Inductance | 680nH |
| Tolerance | ±20% |
| Current Rating | 15.5A |
| Current - Saturation | 25A |
| Shielding | Shielded |
| DC Resistance (DCR) | 5.5 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.280" L x 0.260" W (7.10mm x 6.60mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
