Product Introduction
VLF10040T-220M2R5
- Part Number
- VLF10040T-220M2R5
- Manufacturer/Brand
- TDK Corporation
- Description
- FIXED IND 22UH 2.5A 58 MOHM SMD
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- VLF
- Quantity
- 7795pcs Stock Available.

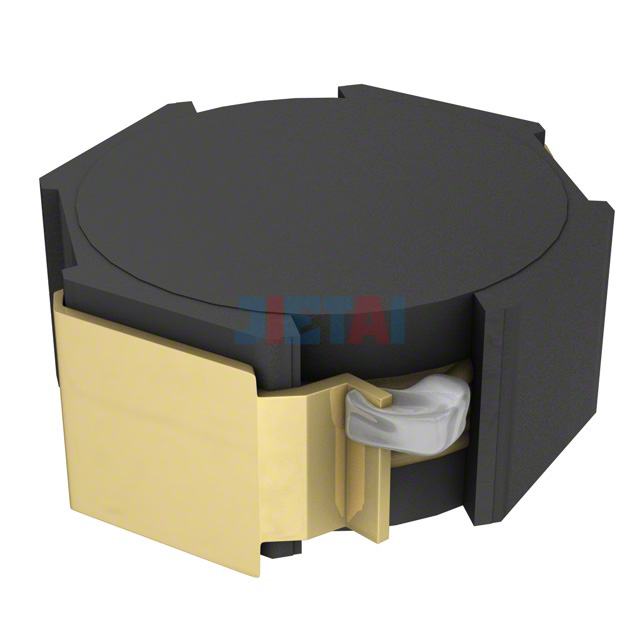

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | VLF10040T-220M2R5 |
| Datasheet | VLF10040T-220M2R5 datasheet |
| Description | FIXED IND 22UH 2.5A 58 MOHM SMD |
| Manufacturer | TDK Corporation |
| Series | VLF |
| Part Status | Last Time Buy |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 22µH |
| Tolerance | ±20% |
| Current Rating | 2.5A |
| Current - Saturation | 2.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 58 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 100kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.394" L x 0.382" W (10.00mm x 9.70mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
