Product Introduction
1060470000
- Part Number
- 1060470000
- Manufacturer/Brand
- Weidmüller
- Description
- TERM BLOCK PLUG 4POS STR 7.62MM
- RoHs Status
- Lead free / RoHS Compliant
- Series
- Omnimate BV
- Quantity
- 216pcs Stock Available.

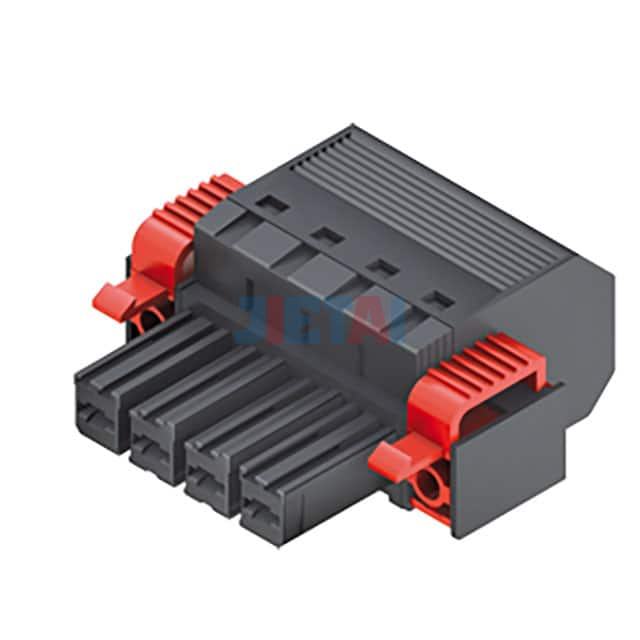

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | 1060470000 |
| Description | TERM BLOCK PLUG 4POS STR 7.62MM |
| Manufacturer | Weidmüller |
| Series | Omnimate BV |
| Part Status | Active |
| Type | Plug, Blade Sockets |
| Number of Positions | 4 |
| Positions Per Level | 4 |
| Number of Levels | 1 |
| Pitch | 0.300" (7.62mm) |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Termination Style | Screwless - Leg Spring, Push-In Spring |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | 41A |
| Voltage - IEC | 1kV |
| Current - UL | 33A |
| Voltage - UL | 600V |
| Wire Gauge or Range - AWG | 8-24 AWG |
| Wire Gauge or Range - mm² | 0.5-10mm² |
| Color | Black |
| Operating Temperature | -50°C ~ 125°C |
| Contact Mating Finish | Tin |
| Features | Latch Lock |
