Home / Products / Capacitors / Aluminum Electrolytic Capacitors / THA111M300AA0C
Product Introduction

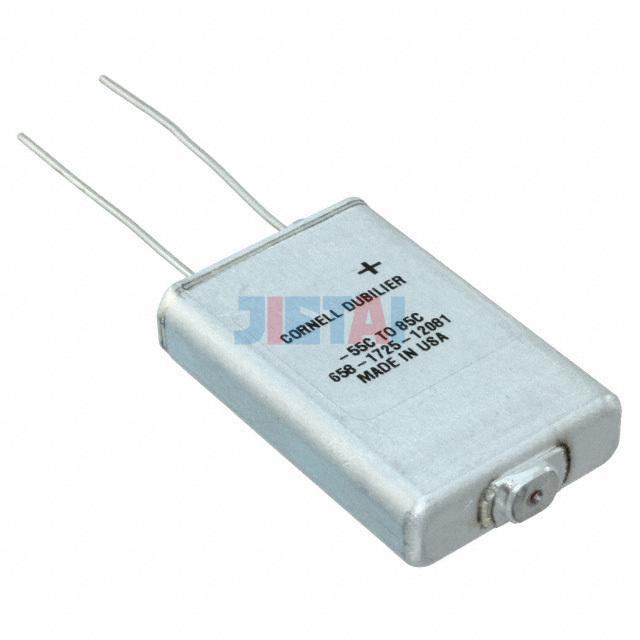

THA111M300AA0C
- Part Number
- THA111M300AA0C
- Manufacturer/Brand
- Cornell Dubilier Electronics (CDE)
- Description
- CAP ALUM 110UF 20 300V T/H
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- THA
- Quantity
- 15pcs Stock Available.
Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | THA111M300AA0C |
| Datasheet | THA111M300AA0C datasheet |
| Description | CAP ALUM 110UF 20 300V T/H |
| Manufacturer | Cornell Dubilier Electronics (CDE) |
| Series | THA |
| Part Status | Active |
| Capacitance | 110µF |
| Tolerance | ±20% |
| Voltage - Rated | 300V |
| ESR (Equivalent Series Resistance) | 900 mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -55°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 600mA @ 120Hz |
| Ripple Current @ High Frequency | 1.02A @ 20kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.433" L x 0.953" W (36.40mm x 24.20mm) |
| Height - Seated (Max) | 0.335" (8.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | FlatPack |
