Product Introduction
PESD15VS1UB,115
- Part Number
- PESD15VS1UB,115
- Manufacturer/Brand
- Nexperia USA Inc.
- Description
- TVS DIODE 15V 40V SOD523
- Category
- TVS - Diodes
- RoHs Status
- Lead free / RoHS Compliant
- Series
- -
- Quantity
- 321188pcs Stock Available.

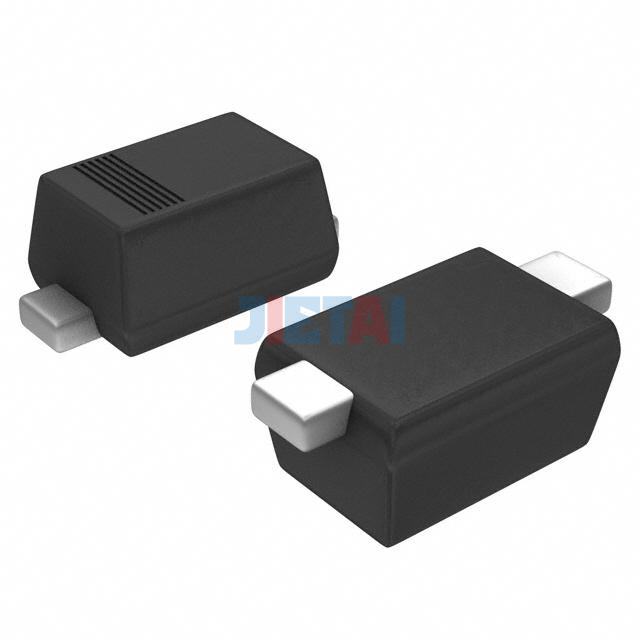

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | PESD15VS1UB,115 |
| Datasheet | PESD15VS1UB,115 datasheet |
| Description | TVS DIODE 15V 40V SOD523 |
| Manufacturer | Nexperia USA Inc. |
| Series | - |
| Part Status | Active |
| Type | Zener |
| Unidirectional Channels | 1 |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 15V (Max) |
| Voltage - Breakdown (Min) | 17.6V |
| Voltage - Clamping (Max) @ Ipp | 40V |
| Current - Peak Pulse (10/1000µs) | 5A (8/20µs) |
| Power - Peak Pulse | 160W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 32pF @ 1MHz |
| Operating Temperature | -65°C ~ 150°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SC-79, SOD-523 |
| Supplier Device Package | SOD-523 |
