Product Introduction
SZESD7205DT5G
- Part Number
- SZESD7205DT5G
- Manufacturer/Brand
- ON Semiconductor
- Description
- TVS DIODE 5V 12.5V SOT723
- Category
- TVS - Diodes
- RoHs Status
- Lead free / RoHS Compliant
- Series
- Automotive, AEC-Q101
- Quantity
- 4pcs Stock Available.

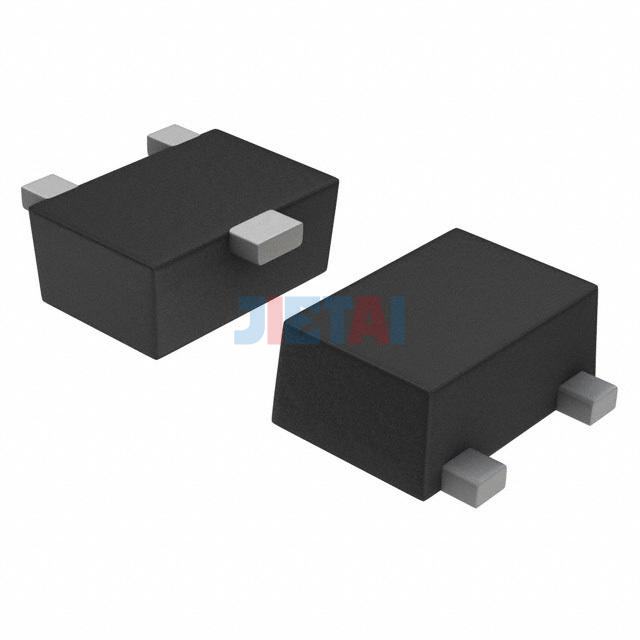

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | SZESD7205DT5G |
| Datasheet | SZESD7205DT5G datasheet |
| Description | TVS DIODE 5V 12.5V SOT723 |
| Manufacturer | ON Semiconductor |
| Series | Automotive, AEC-Q101 |
| Part Status | Active |
| Type | Zener |
| Unidirectional Channels | 2 |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | 5.2V |
| Voltage - Clamping (Max) @ Ipp | 12.5V (Typ) |
| Current - Peak Pulse (10/1000µs) | - |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Applications | Automotive, Ethernet, USB |
| Capacitance @ Frequency | 0.34pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-723 |
| Supplier Device Package | SOT-723 |
