Product Introduction
CBC2012T220M
- Part Number
- CBC2012T220M
- Manufacturer/Brand
- Taiyo Yuden
- Description
- FIXED IND 22UH 190MA 4.81 OHM
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- CB, C Type
- Quantity
- 3154pcs Stock Available.

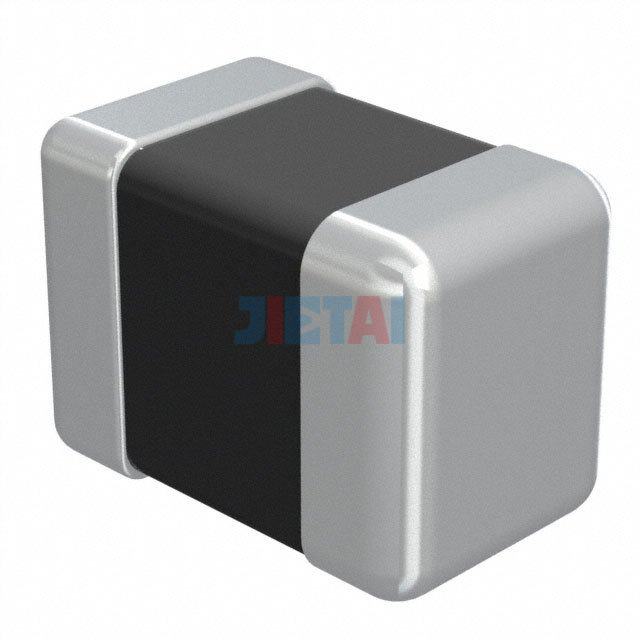

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | CBC2012T220M |
| Datasheet | CBC2012T220M datasheet |
| Description | FIXED IND 22UH 190MA 4.81 OHM |
| Manufacturer | Taiyo Yuden |
| Series | CB, C Type |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 22µH |
| Tolerance | ±20% |
| Current Rating | 190mA |
| Current - Saturation | 170mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 4.81 Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 16MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 2.52MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.057" (1.45mm) |
