Product Introduction
PM105-821K-RC
- Part Number
- PM105-821K-RC
- Manufacturer/Brand
- Bourns Inc.
- Description
- FIXED IND 820UH 240MA 2.55 OHM
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- PM105
- Quantity
- 17pcs Stock Available.

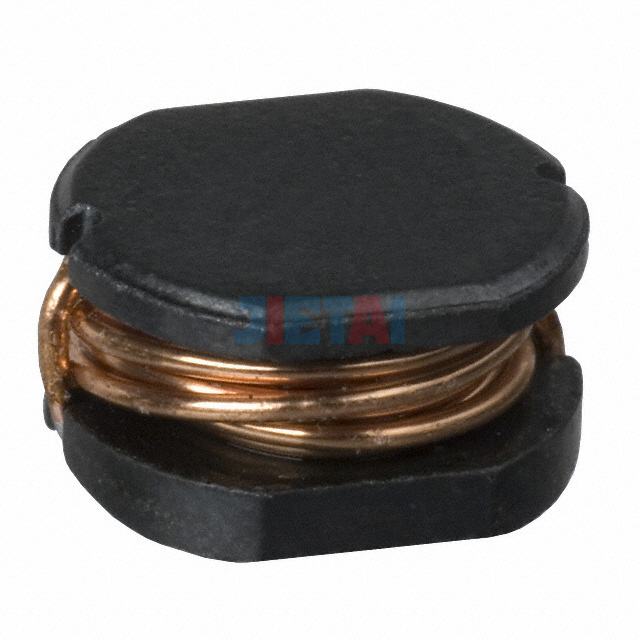

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | PM105-821K-RC |
| Datasheet | PM105-821K-RC datasheet |
| Description | FIXED IND 820UH 240MA 2.55 OHM |
| Manufacturer | Bourns Inc. |
| Series | PM105 |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 820µH |
| Tolerance | ±10% |
| Current Rating | 240mA |
| Current - Saturation | 560mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 2.55 Ohm |
| Q @ Freq | 10 @ 796kHz |
| Frequency - Self Resonant | 2MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.386" L x 0.386" W (9.80mm x 9.80mm) |
| Height - Seated (Max) | 0.228" (5.80mm) |
