Product Introduction
CWR-170-20-0003
- Part Number
- CWR-170-20-0003
- Manufacturer/Brand
- CW Industries
- Description
- CONN EDGE DUAL FMALE 20POS .100
- RoHs Status
- Lead free / RoHS Compliant
- Series
- 170
- Quantity
- 2167pcs Stock Available.

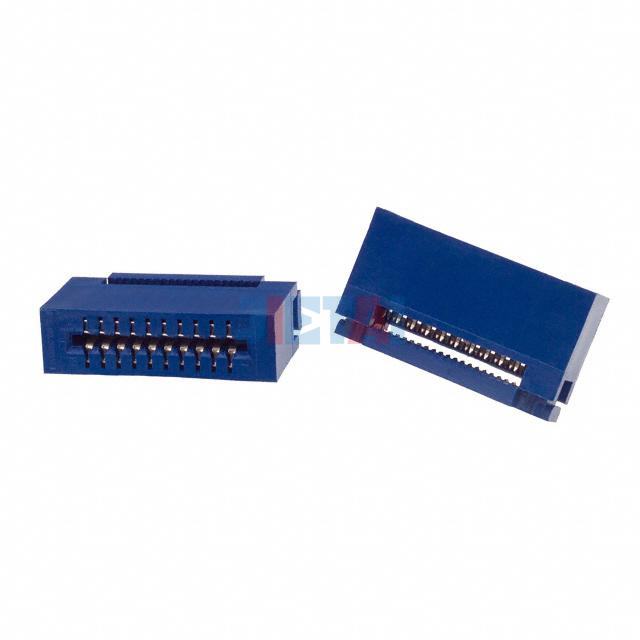

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | CWR-170-20-0003 |
| Datasheet | CWR-170-20-0003 datasheet |
| Description | CONN EDGE DUAL FMALE 20POS .100 |
| Manufacturer | CW Industries |
| Series | 170 |
| Part Status | Active |
| Card Type | Non Specified - Dual Edge |
| Gender | Female |
| Number of Positions/Bay/Row | 10 |
| Number of Positions | 20 |
| Card Thickness | 0.032" ~ 0.070" (0.81mm ~ 1.78mm) |
| Number of Rows | 2 |
| Pitch | 0.100" (2.54mm) |
| Read Out | Dual |
| Features | - |
| Mounting Type | Free Hanging (In-Line) |
| Termination | IDC |
| Contact Material | Phosphor Bronze |
| Contact Finish | Tin-Lead |
| Contact Finish Thickness | 100.0µin (2.54µm) |
| Contact Type | Cantilever |
| Color | Blue |
| Flange Feature | - |
| Operating Temperature | -55°C ~ 125°C |
