Home / Products / Inductors, Coils, Chokes / Fixed Inductors / LQH32CN1R0M53L
Product Introduction
LQH32CN1R0M53L
- Part Number
- LQH32CN1R0M53L
- Manufacturer/Brand
- Murata Electronics North America
- Description
- FIXED IND 1UH 1A 60 MOHM SMD
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- LQH32
- Quantity
- 4169pcs Stock Available.

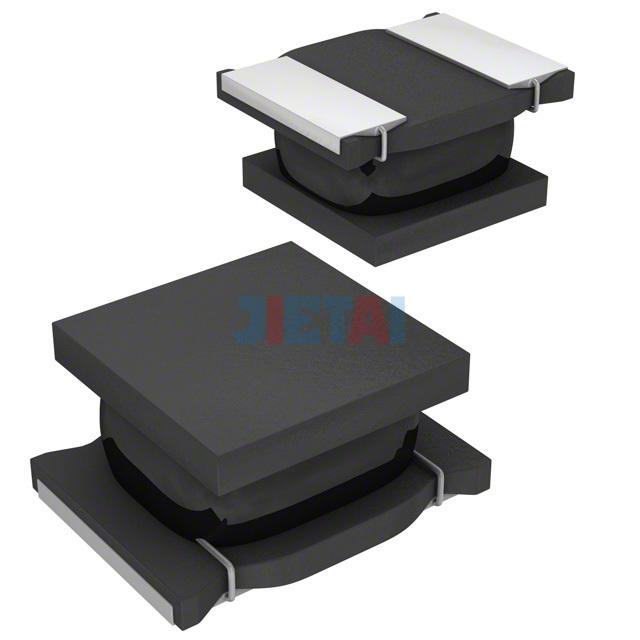

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | LQH32CN1R0M53L |
| Datasheet | LQH32CN1R0M53L datasheet |
| Description | FIXED IND 1UH 1A 60 MOHM SMD |
| Manufacturer | Murata Electronics North America |
| Series | LQH32 |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 1µH |
| Tolerance | ±20% |
| Current Rating | 1A |
| Current - Saturation | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 78 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 100MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 1MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 1210 |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.067" (1.70mm) |
