Product Introduction
ALS81C164QM063
- Part Number
- ALS81C164QM063
- Manufacturer/Brand
- KEMET
- Description
- CAP ALUM 160000UF 20 63V SCREW
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- ALS81
- Quantity
- 24pcs Stock Available.

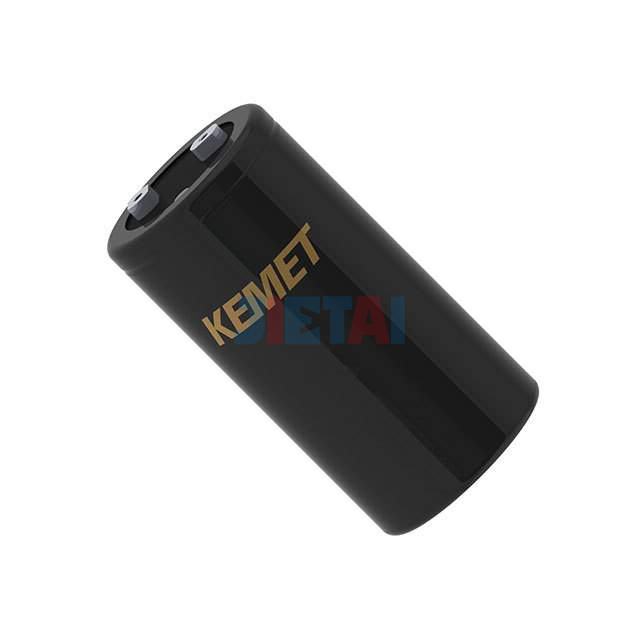

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | ALS81C164QM063 |
| Datasheet | ALS81C164QM063 datasheet |
| Description | CAP ALUM 160000UF 20 63V SCREW |
| Manufacturer | KEMET |
| Series | ALS81 |
| Part Status | Active |
| Capacitance | 160000µF |
| Tolerance | ±20% |
| Voltage - Rated | 63V |
| ESR (Equivalent Series Resistance) | 7 mOhm @ 100Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 29.9A @ 100Hz |
| Ripple Current @ High Frequency | 31.8A @ 10kHz |
| Impedance | 8 mOhms |
| Lead Spacing | 1.252" (31.80mm) |
| Size / Dimension | 3.543" Dia (90.00mm) |
| Height - Seated (Max) | 5.236" (133.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
